LYNX MH4-5200 Forsterker 4 x 1300W @4Ohm, DSP LYNX MH4-5200 Forsterker 4 x 1300W @4Ohm, DSP

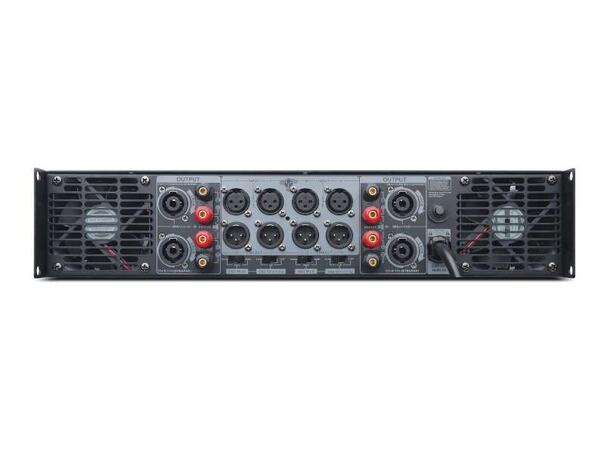

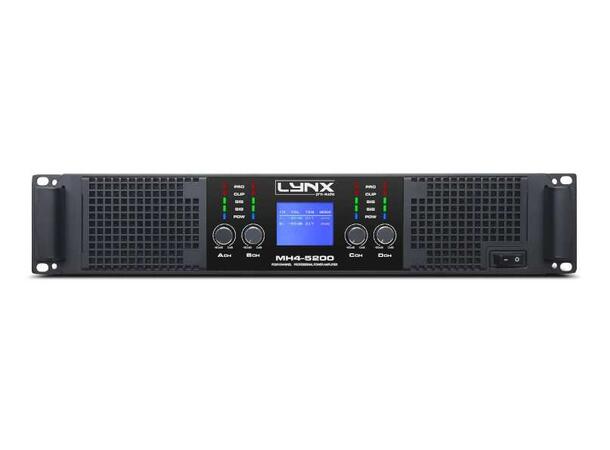

LYNX MH4-5200 Forsterker

4 x 1300W @4Ohm, DSP

Varenr: 185546
Alt. varenr: MH2-5200
18 034,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

The second generation of high-efficiency Class H circuits introduces the MH amplifier, a significant advancement in amplifier technology.


These circuits are designed to optimize power output while minimizing energy loss, making them highly efficient.


MH2 & MH4 Technical Data

MH2 – 1500

MH2 – 3200
  Output power
@ 2 Ohms 2 x 900 W 2 x 2200 W
@ 4 Ohms 2 x 750 W 1 x 1600 W
@ 8 Ohms 2 x 600 W 2 x 1000 W
@ 4 Ohms Bridged 1800 W 4400 W
@ 8 Ohms Bridged 1500 W 3200 W

Frequency response

Bandwidth ± 0.25dB
20 Hz – 20 kHz

Phase response

1 W 20 Hz – 20 kHz
±15 deg
 Total Harmonic Distortion
 <0.05%

Damping factor

20 – 500 Hz @8O
>700
Crosstalk 20 Hz – 1 kHz
>75

Sensitivity

Rated power
0.775V / 1.0V / 1.44V
Signal to noise ratio
>100 dB
 Operating voltage (50 – 60 Hz)
230 V AC 50 Hz / 60 Hz

Dimensions

W x H x D (mm)
  483 x 88 x 430/400
Weight
15.7 Kg 19.5 Kg
Protections
Soft-start, Mute transient on/off, overheating, DC, RF, short circuit, power overload



MH4 – 4000

MH4 – 5200
  Output power
@ 2 Ohms 4 x 1300 W 4 x 1600 W
@ 4 Ohms 4 x 1000 W 4 x 1300 W
@ 8 Ohms 4 x 800 W 4 x 1000 W
@ 4 Ohms Bridged 2 x 2600 W 2 x 3200 W
@ 8 Ohms Bridged 2 x 2000 W 2 x 2600 W

Frequency response

Bandwidth ± 0.25dB
20 Hz – 20 kHz

Phase response

1 W 20 Hz – 20 kHz
±15 deg
 Total Harmonic Distortion
 <0.05%

Damping factor

20 – 500 Hz @8O
>700
Crosstalk 20 Hz – 1 kHz
>75

Sensitivity

Rated power
0.775V / 1.0V / 1.44V
Signal to noise ratio
>100 dB
 Operating voltage (50 – 60 Hz)
230 V AC 50 Hz / 60 Hz

Dimensions

W x H x D (mm)
  483 x 88 x 500/470
Weight
28.4 Kg 25.5 Kg
Protections
Soft-start, Mute transient on/off, overheating, DC, RF, short circuit, power overload
