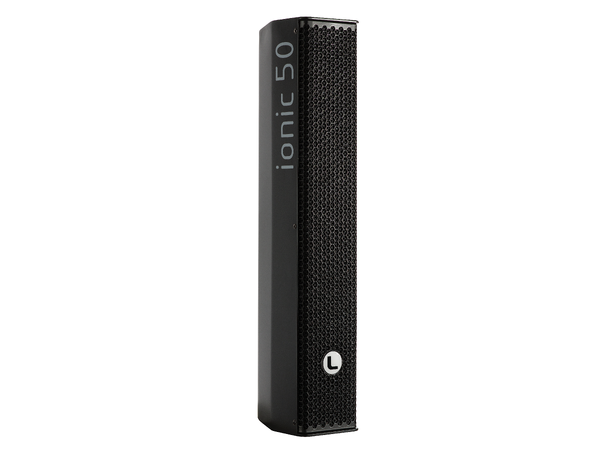

Ultra-compact, passive column speaker with 6 x 3” (0.75” voice coil) neodymium transducers. 15º +/ -5º vertical coverage. 119dB SPL.
| Specifications |
| Components |
6 x 3” speaker with 0.75” voice coil |
| Frequency range |
150 Hz – 20 KHz (-10dB) |
| Frequency Response |
180 Hz – 20 KHz (± 3dB) |
| Sensitivity |
97 dB (1W@1m) |
| Max. SPL |
119 dB – 125 dB peak |
| Coverage |
15º ± 5º V x 100º H |
| Rated power ( AES) |
150 W, 300 W program, 600 W peak |
| Nominal Impedance |
32 Ohms |
| Connectors |
2 x Neutrik Speakon NL4MP |
| Finish |
Micro-textured epoxy paint |
| Material |
1.5 mm stainless steel |
| Dimensions (H x W x D) |
502.5 x 89 x 117 |
| Weight |
7 Kg ( 15 lbs) |
