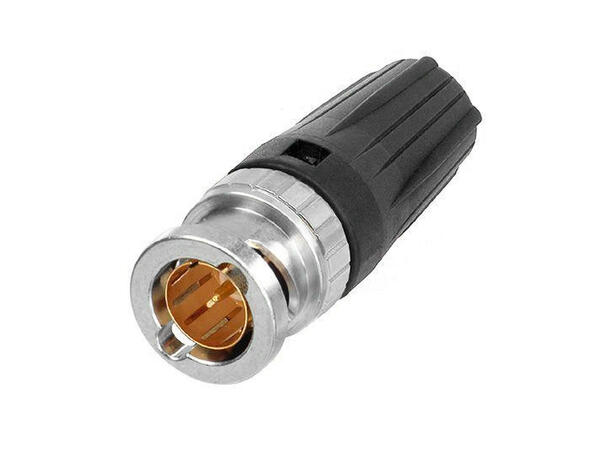

NEUTRIK NBNC75BLP9X Rear Twist UHD-SDI Krympekapasitet 1.07/6.47, Maks Ø6.3mm

NEUTRIK NBNC75BLP9X Rear Twist UHD-SDI

Krympekapasitet 1.07/6.47, Maks Ø6.3mm

Varenr: 147501

Alt. varenr: NBNC75BLP9X

69,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Advantages:

Proven technology rearTWIST
Swiss Antraloy coating
Compatible with conventional BNC chassis connectors

Specifications:

Article number	NBNC75BLP9X
EAN	4049371300438
Brand	NEUTRIK
Application	video
Colour	black
Colour detailed	black
Weight kg	0,01471
Model	BNC
Style variant	straight
Gender	male
Material	metal
Coding	none
Codable	yes
Pole number	2-pole
Connector / Socket	male connector
Type of contact	crimp
Contact coating	hard gold plated
Mounting	Cable
Cable diameter min. mm	4,3
Max. cable diameter mm	6
Transmission standard	UHD
Impedance O	75
Available since	V07.0
