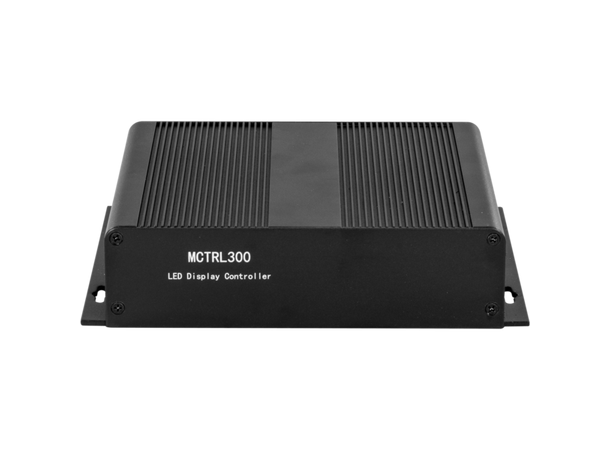

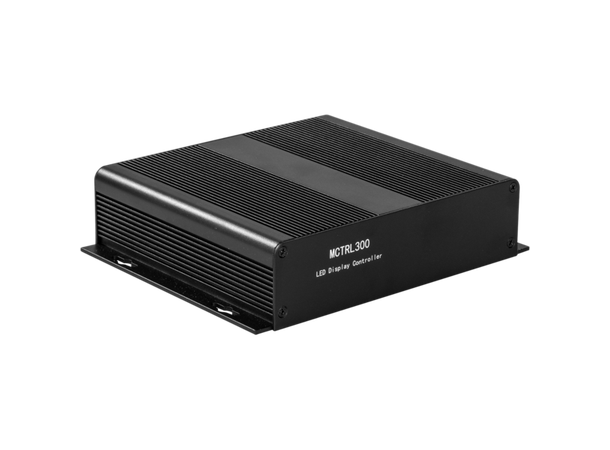

Nova MCTRL300 is standard model of Nova controller. It has the same characteristics as sending card MSD300.
Features
- Input Resolution: 1920×1200, 2048×1152, 2560×960(width and height can be specially defined by customers)
- Single sending card supports resolution: 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668
- Capacity: 1,3 million pixels
- Control Method: USB Interface
- Video Interface: DVI
- Audio Interface: 3,5mm
- Viedo Format: RGB

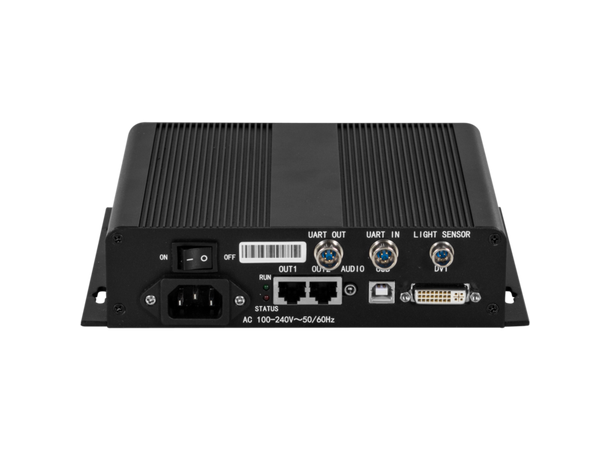

- Output Interface: 2 Ethernet ports
- 2 serial ports (UART) for cascading by USB cable
- User interface with dual LEDs (red = powered, flashing green = signal present)
- Bit Depth Of Video Resource: 8bit
- 1 light sensor interface
- Power Consumption: 2,9W
- Independent power supply: 5-12V
- Dimensions (WxHxD): 192x48x160 mm
- Weight: 1 kg
