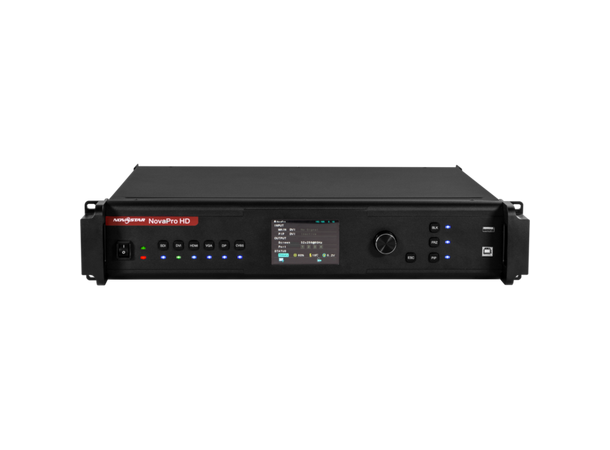

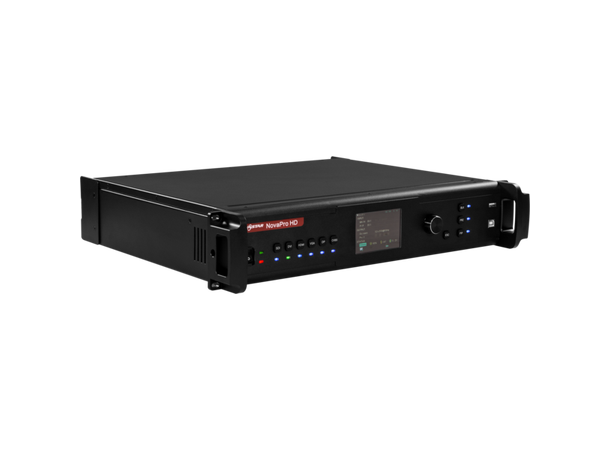

The NovaPro HD is a professional LED display controller. Besides the function of display control, it also features in powerful front end processing, so an external scalar is no longer needed. With professional interfaces integrated, NovaPro HD meets the requirements of broadcast industry, in image quality and in control.
Features
- Inputs: DP,HDMI,VGA,DVI, CVBS,SDI
- Input resolution: up to 1080p@60Hz
- Outputs: Optical Fiber Output × 4, Ethernet port × 4
- Loading Capacity: 2.35 million pixels, the maximum pixel CLK is 165MHz, 4G-Bit Output bandwidth
- Video Loop: DVI,SDI,GenLock
- Video Monitor: DVI,HDMI
- Communication Mode: USB/LAN
- Image Mosaic supported
- Crop Settings supported
- PIP supported
- Power Supply: 100-240V – 50/60Hz
- Power Consumption: 30W
- Dimensions (WxHxD): 483x88,2x389 mm
- Weight: 6 kg

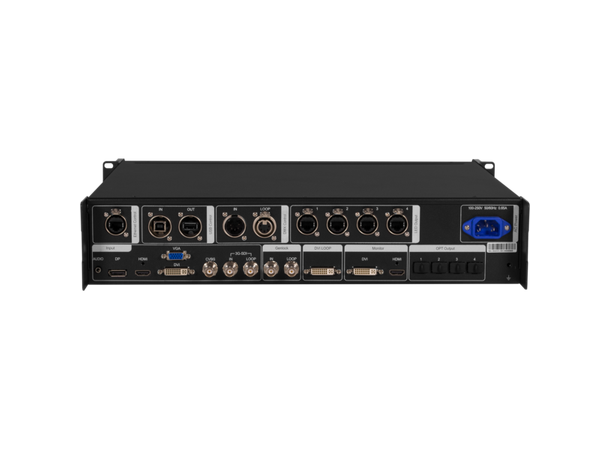

Input
- 1 x CVBS: PAL/NTSC
- 1 x VGA: VESA standard
- 1 x DVI: VESA standard (support 1080i input) and support HDCP
- 1 x HDMI: EIA/CEA-861 standard, conforming to HDMI-1.3 standard and supporting HDCP
- 1 x DP: VESA standard
- 1 x 3G-SDI: 480i, 576i, 720p, 1080i/p (3G SDI)
Output
- 1 x DVI input looping out (DVILOOP): Consistent with DVI input Support HDCP looping out
- 2 x DVI, 1 x HDMI: 1280×1024/60Hz, 1440×900/60Hz, 1680×1050/60Hz, 1600×1200/60Hz, 1600×1200/60Hz – Reduced, 1920×1080/60Hz/50Hz, 2560×816/60Hz, 2048×640/60Hz, 1920×1200/60Hz, 2304×1152/60Hz, 2048×1152/60Hz, 1024×1280/60Hz, 1536×1536/60Hz, User-defined output resolution (bandwidth optimization), Horizontal resolution: maximum 3840 pixels, Vertical resolution: maximum 1920 pixels
- 1 x SDI input looping out (SDILOOP): 480i, 576i, 720p, 1080i/p (3G SDI)
