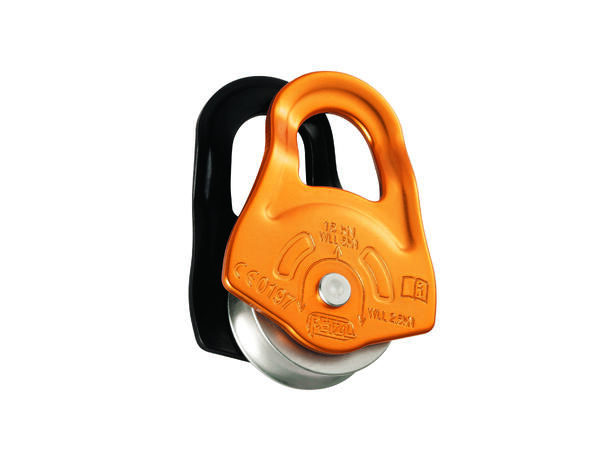

Compact pulley with swinging side plates
The PARTNER pulley is compact and light, yet ensures excellent efficiency thanks to its aluminum sheave mounted on sealed ball bearings.
Description
Extremely lightweight and ultra-compact pulley
Quick and easy installation due to the swinging side plates
Sheave mounted on sealed ball bearings for excellent efficiency
Specifications
Material(s): aluminum side plates, aluminum sheave
Certification(s): CE EN 12278, UIAA
References
|
References |
P52A |
|
Weight |
56 g |
|
Min. rope diameter |
7 mm |
|
Max. rope diameter |
11 mm |
|
Sheave diameter |
25 mm |
|
Efficiency |
91 % |
|
Working load |
on one rope strand: 2.5 kN |
|
Working load |
5 kN |
|
Breaking strength |
15 kN |
|
Guarantee |
3 years |
|
Inner Pack Count |
1 |
