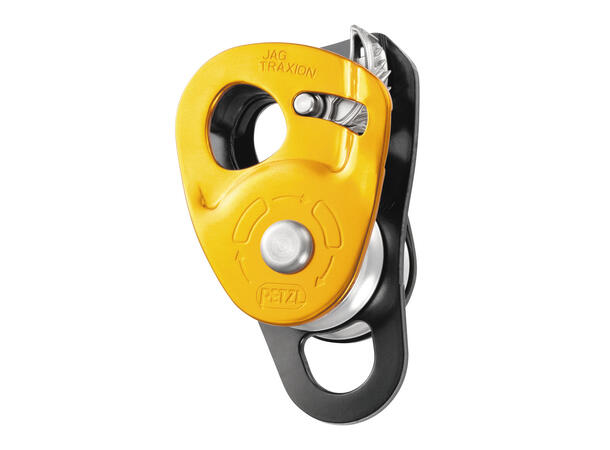

High-efficiency double progress capture pulley The JAG TRAXION double progress capture pulley is designed for use with the JAG pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Description

• Designed for use with the JAG double pulley to make a 4:1 haul system
• Toothed cam with self-cleaning slot optimizes performance under any conditions (frozen or muddy ropes...)
• Sheave mounted on sealed ball bearings for excellent efficiency

Specifications

• Weight: 145 g
• Certification(s): CE EN 567, UKCA, NFPA 1983 Technical Use
• Material(s): aluminum, nylon
• Min. rope diameter: 8 mm
• Max. rope diameter: 11 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 25 mm
• Maximum working load: 2 × 1,5 kN × 2 = 6 kN
• Breaking strength: 2 × 4 kN × 2 = 16 kN Efficiency: 91 %
