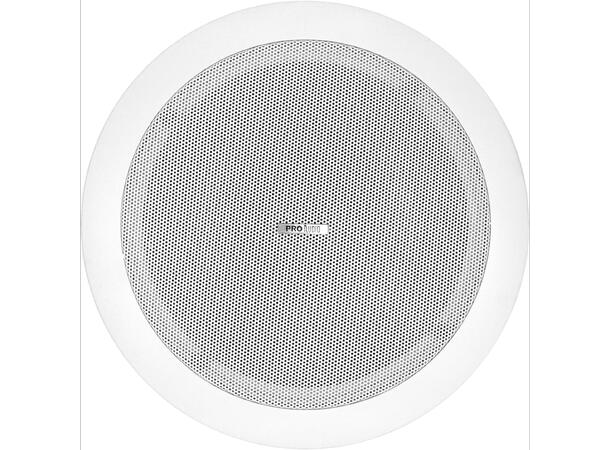

Ceiling speaker for recessed mounting with a closed rear cap. ideal for vocal announcements and reproduction of background music.

Features:
Ceiling speaker with coaxial tweeter placed on a bridge support.
Built-in line transformer with multiple output connections for 70/100 V constant voltage lines.
White ABS body and metal protection grid.

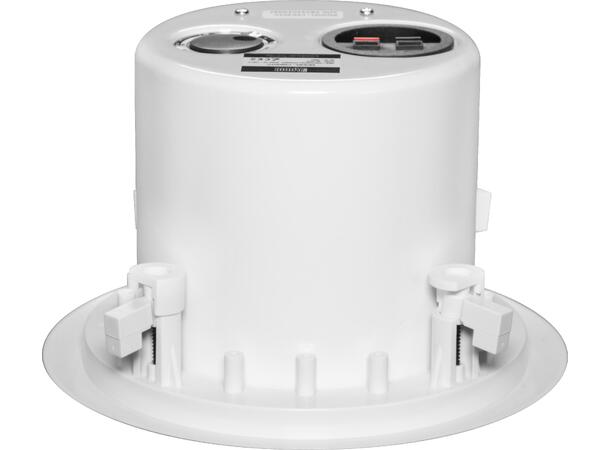

Quick and easy installation by a special holding system, with no need of screws or other fixing elements.

LOUDSPEAKER
System type: closed enclosure ceiling speaker

COMPONENTS
Low frequency: 6''
High frequency: 1''

FEATURES
AES/program power: 30/60W
Input 100 V: 3.75/7.5/15/30W

ACOUSTICAL SPECIFICATIONS
Sensitivity: 91dB @1W/1m (free field)
Impedance: 8 Ohm
Constant voltage: 70/100 V
Frequency response: 90÷20.000Hz (±3dB)

INPUT/OUTPUT CONNECTORS

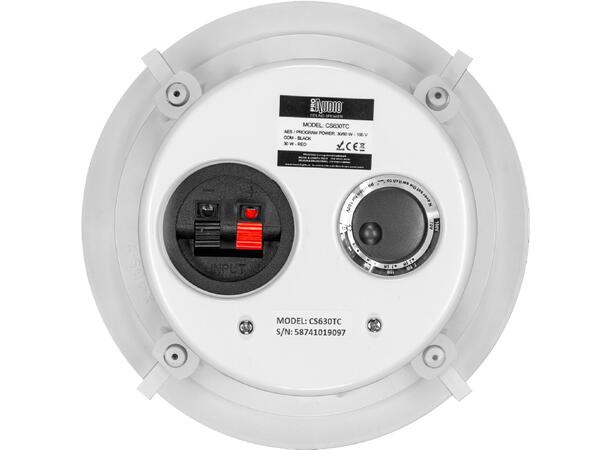

Input signal: terminal with wire

CABINET CONSTRUCTION
Cabinet material: ABS, Iron

PHYSICAL
Weight: 2.30kg
Diameter Ø: 230mm
Flush-mounting hole Ø: 200mm
Color: White - 9010RAL
