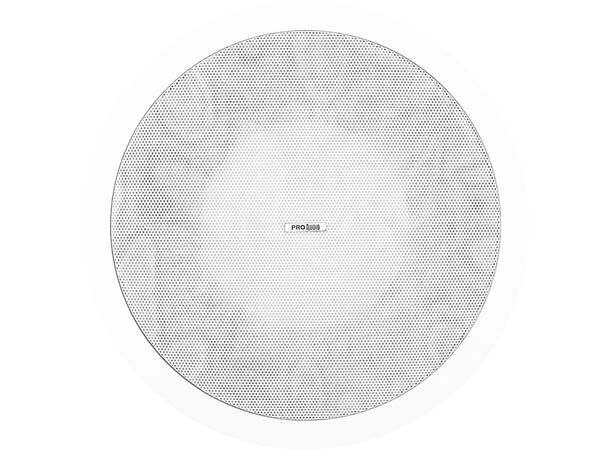

Recessed subwoofer loudspeaker with closed rear cover. Ideal for high fidelity sound reproduction designed for ceiling mounting. Constant voltage (100 V) or low impedance (8 Ohm) operation.

Features:
Ceiling subwoofer.
Built-in line transformer output connections for 100 V constant voltage lines.
White ABS body and metal protection grid.
Quick and easy installation by a special holding system, with no need of screws or other fixing elements.

LOUDSPEAKER
System type: closed enclosure ceiling speaker

COMPONENTS
Low frequency: 8''

FEATURES
AES/program power: 50/100W
Input 100 V: 50W
SPL max: 101dB

ACOUSTICAL SPECIFICATIONS
Sensitivity: 90dB @1W/1m (free field)

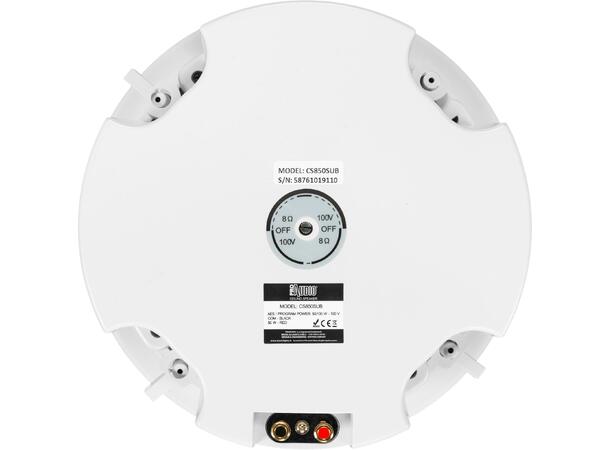

Impedance: (200 Ohm/100 V)/ 8 Ohm
Constant voltage: 100 V
Frequency response: 50÷200Hz (±3dB)
Coverage angle HxV: ° omnidirectional

INPUT/OUTPUT CONNECTORS

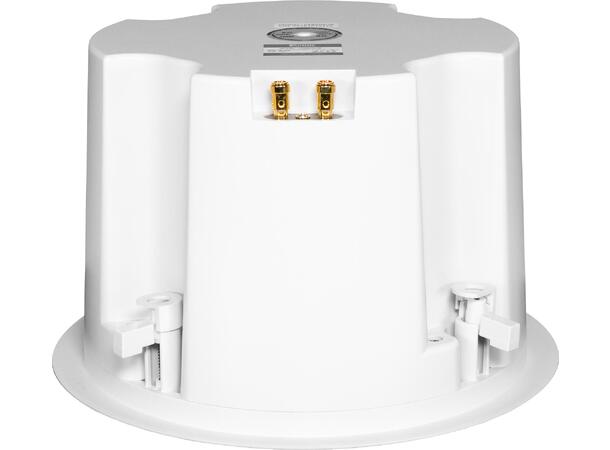

Input signal: terminal with wire

CABINET CONSTRUCTION
Cabinet material: ABS, Iron

PHYSICAL
Weight: 4kg
Diameter Ø: 280mm
Flush-mounting hole Ø: 250mm
Color: White - 9003RAL
