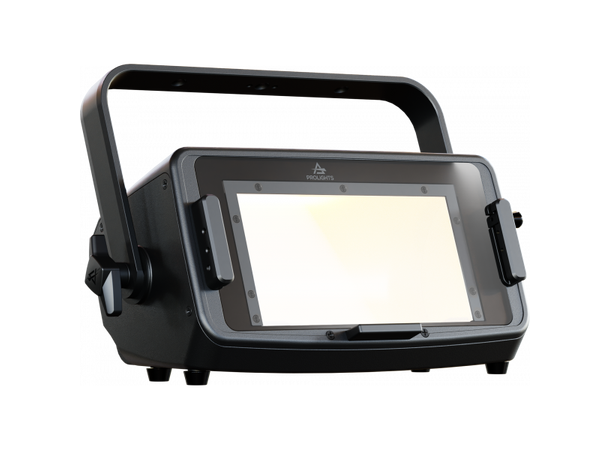

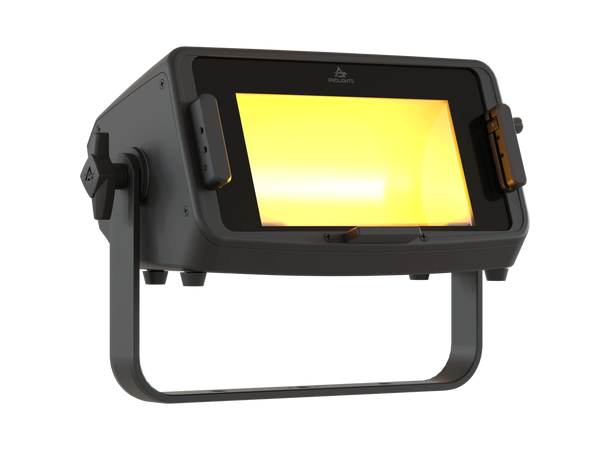

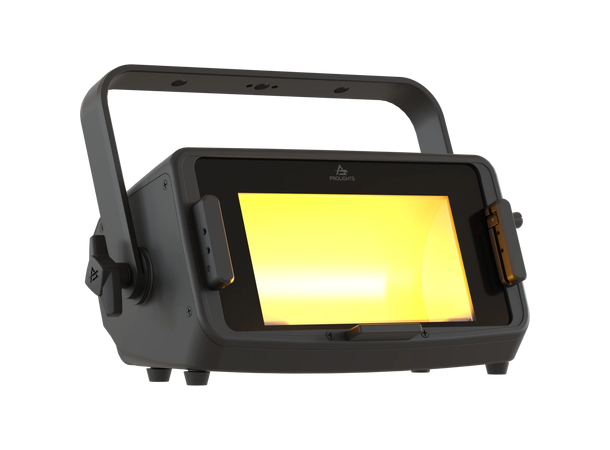

The EclExpo Flood300FC is a Full Spectrum high power LED Floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

The EclExpo Flood300FC has a calibrated 300W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for exhibition floodlights.

FEATURES:

• 300W calibrated RGB+WarmWhite source, with high CRI and TM30
• Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
• Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

LIGHT SOURCE

• Source: 300W RGB + Warm White LED
• Luminous flux: 10'197lm @3.200 K
• Lux: 119lx @5 m
• CRI: 93,6 @5'600K
• R9: 95,2 @5'600K
• TLCI: 93 @5'600K
• TM30 Rf: 91,7 @5'600K
• TM30 Rg: 105,3 @5'600K
• Source life expectancy: > 20.000 h

OPTICS

• Optics: asymmetrical beam reflector in pure aluminium 99,6%
• Beam angle: (H) 100° x (V) 60°
• Additional optics: 5° smooth filter on-board

COLOUR SYSTEM

• Colour mixing: RGB + Warm White
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K
• Colour wheel: built-in white presets

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Static mode: selection of static dimmer, colors and color temperature
• Manual mode: manual adjustment of intensity, CT, colour correction from knob
• Auto mode: built-in programs with execution speed adjustment
• BODY
• Body: sturdy die-cast magnesium body
• Body colour: RAL 9004
• Other: see available accessories

CONTROL

• Protocols: DMX512, RDM
• Stand Alone: 2 rotatory knobs
• DMX channels: 1 / 2 / 5 / 6 / 17channel
• Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 340W
• Output (at 230V): 5 units on a single power line
• Power factor: > 0,97
• PHYSICAL

IP rating: 20

• Cooling: active, silent operation

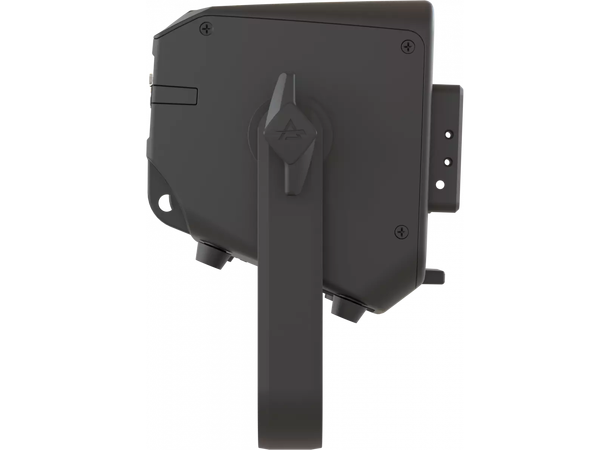

• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT

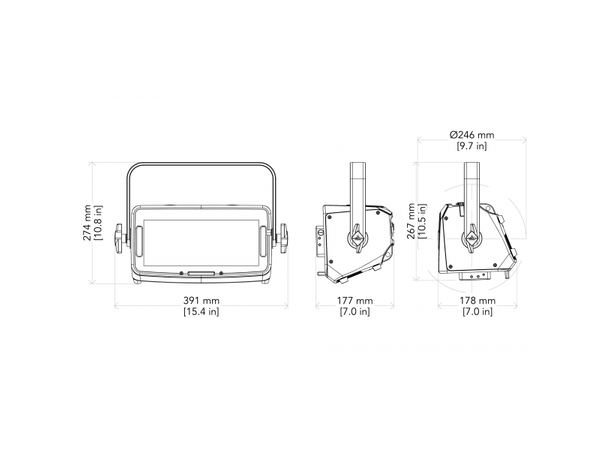

• Dimensions (WxHxD): 391x247x210mm
• Weight: 5,2kg

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x ECLEXPOFL300FC
• 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
• User Manual
