NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

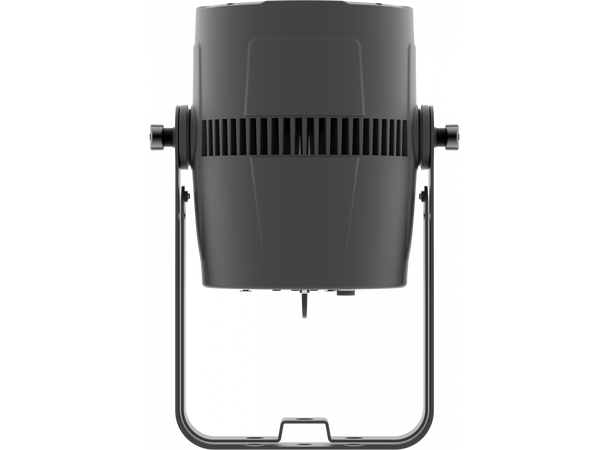

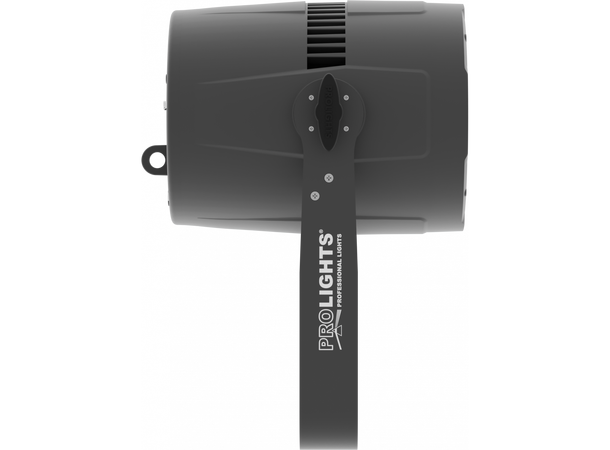

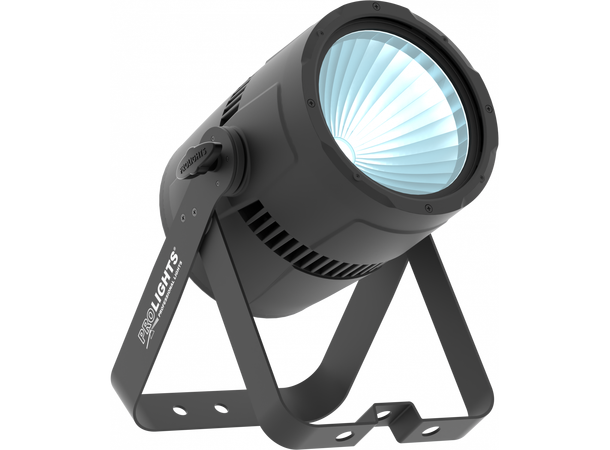

StudioCob DY is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.
Features:
100 W 5.000 K COB LED source with HD dimming and high CRI
Flexible lens options of 15° - 30° - 60°
Functional barn doors for beam control
LIGHT SOURCE
Source: 100W high-power white LED
CCT: 5.000K
CRI: 83
R9: 82,6
Luminous flux: 5'290lm
Lux: (30°) 1'940lx @3 m
Source life expectancy: > 30.000 h
Other: TLCI (Qa): 68,7
OPTICS
Beam angle: 60°
Field angle: 80°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) - 15° (opt)
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black, mirror and white finishing available
CONTROL
Protocols: DMX512
DMX channels: 1 / 2 / 5channel
Display: black OLED high resolution display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 104W
Power consumption (at 120 V): 104W
Output (at 230 V): 12 units on a single power line
Power factor: 0,9346
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

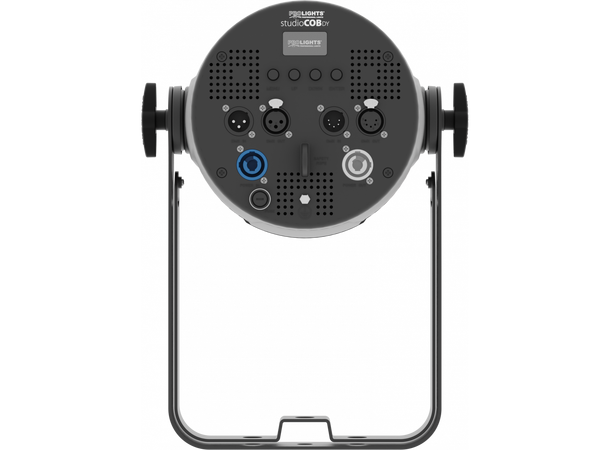

Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 262x190x371mm
Weight: 4,5kg
