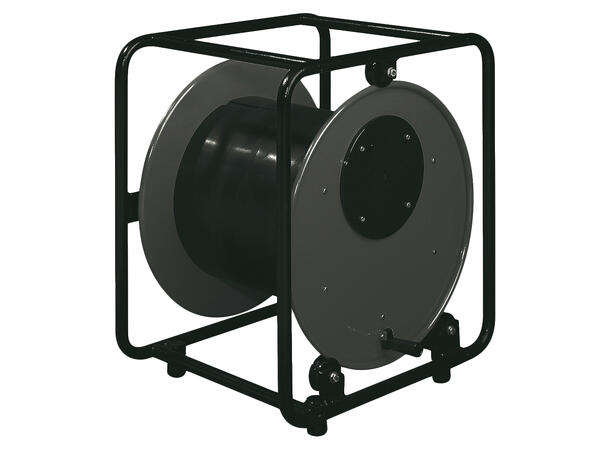

SCHILL SK4822-SW Kabeltrommel Inv. Ø360mm, Utv. Ø460mm, Inv. B:336mm

SCHILL SK4822-SW Kabeltrommel

Inv. Ø360mm, Utv. Ø460mm, Inv. B:336mm

Varenr: 140432
Alt. varenr: SK4822-SW
18 096,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Roll over Beethoven...

or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage.
The reels are empty, i.e. they are delivered without cable and cover. We have the complete SCHILL-assortment in stock – just ask us !



Specifications:

Article numberSK4822-SW
NameSK4822-SW
EAN4013046435008
BrandSCHILL
TypeKabeltrommel
Materialmetal
Core-Ø mm360
Outer-Ø mm460
Wind. width mm336
Wind. length max. at Ø 7,0 mm m585
Wind. length max. at Ø 8,0 mm m409
Wind. length max. at Ø 9,0 mm m315
Wind. length max. at Ø 12,0 mm m170
Wind. length max. at Ø 14,0 mm m146
Wind. length max. at Ø 20,0 mm m58
Wind. length max. at Ø 26,0 mm m31
Wind. length max. at Ø 30,0 mm m26
