All good things come from above…
Advantages:
Application:
Specifications:
| Article number | 200-0171 |
|---|

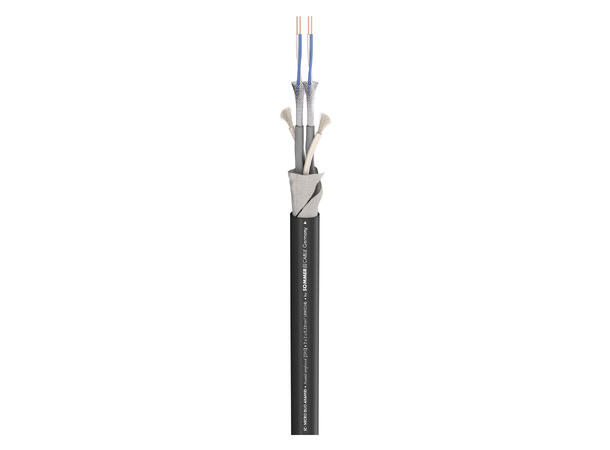

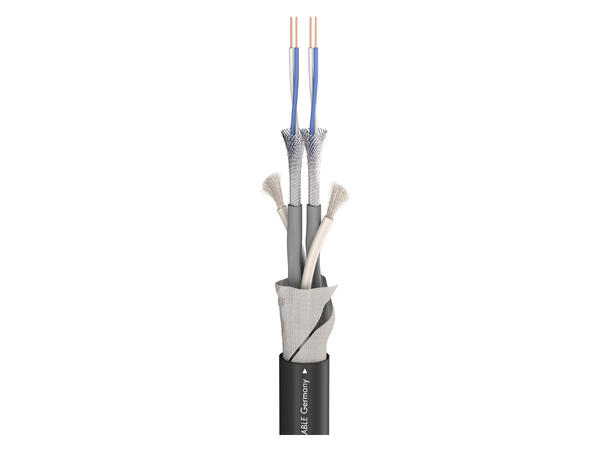

| Name | SC-MICRO DUO ARAMID |
|---|
| EAN | 4049371362177 |
|---|
| Brand | Sommer cable |
|---|
| Properties | Analog |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Installation |
|---|
| Application | Microphone Cable |
|---|
| Colour | black |
|---|
| Jacket material | S-PVC |
|---|
| Number of Channels (audio) | 2 |
|---|
| Inner conductor (audio) | 2 |
|---|
| Inner conductor (audio) mm² | 0,14 |
|---|
| AWG (audio) | 26 |
|---|
| Shielding | Copper spiral in pairs, tin-plated |
|---|
| Copper strands (audio) | 36 |
|---|
| Copper strand Ø (audio) mm | 0,07 |
|---|
| Weight per 1 m g | 76.8 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 8,5 |
|---|
| Height mm | 8,5 |
|---|
| Capac. cond./cond. per 1 m (audio) pF | 51 |
|---|
| Capacity wire/wire at 1 ft. (audio) pF | 15,5448 |
|---|
| Capac. cond./shield. per 1 m (audio) pF | 101 |
|---|
| Capacity wire/electic screen at 1 ft. (audio) pF | 30,7848 |
|---|
| Insulation resist. per 1 km (audio) GO | 0,02 |
|---|
| Insulation resist. per 1000 feet (audio) GO | 0,0061 |
|---|
| Conductor resistance per 1 km (audio) O | 135 |
|---|
| Conductor resistance per 1000 ft. (audio) O | 41,148 |
|---|
| Max . Tensile strength kg | 100 |
|---|
| Old article number | 999-0001-338 |
|---|
