SOMMER Octave Tube Mikrofonkabel 5 x 0,14 mm², 2 x 0,50 mm², mørk grå SOMMER Octave Tube Mikrofonkabel 5 x 0,14 mm², 2 x 0,50 mm², mørk grå

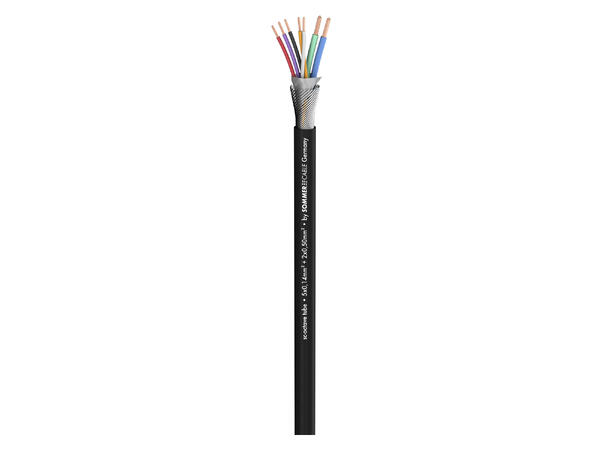

SOMMER Octave Tube Mikrofonkabel

5 x 0,14 mm², 2 x 0,50 mm², mørk grå

Varenr: 141325
Alt. varenr: 200-0186
67,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

We stomp on it...

with our SC-Octave Tube which has been custom-designed for the connection of tube microphones or remote-controlled studio microphones. It has a total of 7 conductors, two for the supply voltage and the others for parameter-variable directivity, sensor (measuring) line, heating, and the voltage supply for the tube capsule. These five conductors consist of 72 superfine 0,05 mm single wires and guarantee a linear transmission and high flexibility.
Owing to its 100 % coverage shielding (helical copper mesh screen + AL fleece) the SC-Octave Tube is perfectly protected against all kinds of interference.
It is ideal for connecting Neumann, BPM, or Schoeps microphones.


Advantages:

  • Audio and power signal in one cable
  • 100 % interference protection
  • High-quality, linear transmission
  • Highly flexible

Application:

  • Connection of tube microphones
  • Also usable as a high-quality control line


Specifications:

1
Article number200-0186
NameSC-Octave Tube
EAN4049371004428
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaInstallation
Application areaStudio / Broadcast
ApplicationMicrophone Cable
Colourgrey
Colour detaileddark grey
Signal transmissionsymmetrical
Construction(5LI2Y0,14mm²+2LI2Y0,50mm²)(ST)DY
Construction (audio)5LI2Y0,14mm²
Construction (control)2LI2Y0,50mm²
Jacket materialPVC
Jacket Ø mm6,50
Jacket Ø (audio) mm0,00
Jacket Ø (control) mm0,00
Number of Channels (audio)1
Number of Channels (control)2
Inner conductor (audio)5
Inner conductor (audio) mm²0,14
Inner conductors (control) mm²0,50
Inner conductor Ø (audio) mm0,42
Inner conductor Ø (control) mm0,80
AWG (audio)26
AWG (control)20
ShieldingCopper spiral shielding tin-plated+ AL-fleece
Shielding factor %100
Copper strands (audio)72
Copper strands (control)64
Copper strand Ø (audio) mm0,05
Copper strand Ø (control) mm0,10
Conductor insulation materialPE
Weight per 1 m g58
Fire load per m kWh0,2
Style variantround
Packingbulk stock
Temperature min. °C-25
Temperature max. °C70
Width mm6,5
Height mm6,5
Capac. cond./cond. per 1 m (audio) pF69
Capacity wire/wire at 1 ft. (audio) pF21,0312
Capacity wire/wire at 1m (control) pF69
Capacity wire/wire at 1 ft. (control) pF21,0312
Capac. cond./shield. per 1 m (audio) pF120
Capacity wire/electic screen at 1 ft. (audio) pF36,576
Capacity wire/electic screen at 1m (control) pF120
Capacity wire/electic screen at 1 ft. (control) pF36,576
Insulation resist. per 1 km GO0,2
Insulation resist. per 1000 feet GO0,061
Insulation resist. per 1 km (audio) GO0,2
Insulation resist. per 1000 feet (audio) GO0,061
Insulation resist. per 1 km (control) GO0,2
Insulation resist. per 1000 feet (control) GO0,061
Conductor resistance per 1 km O0
Conductor resistance per 1000 ft. O0
Conductor resistance per 1 km (audio) O140
Conductor resistance per 1000 ft. (audio) O42,672
Conductor resistance per 1 km (control) O39
Conductor resistance per 1000 ft. (control) O11,8872
Shield. resistance per 1 km O17
Shield. resistance per 1000 ft. O5,1816
BPVo-EuroclassFca
