For musicians with a clear view...
Advantages:
- Extremely flexible
- Low capacitance and damping due to gas-injected insulation
- AES/EBU- and DMX-conform
- Ambience upgrading due to high-class design
Application:
- A real “eyecatcher“ in the studio, on stage, e.g. in jazz clubs, cabaret setting
- Absolutely high-quality microphone cable for studio and live use
Specifications:
| Article number | 200-0713 |
|---|
| Name | SC-CLUB RED ZILK |
|---|
| EAN | 4049371237161 |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Analog |
|---|
| Application area | Installation |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application | Microphone Cable |
|---|
| Colour | red |
|---|
| Colour detailed | wine-red |
|---|
| Signal transmission | symmetrical |
|---|

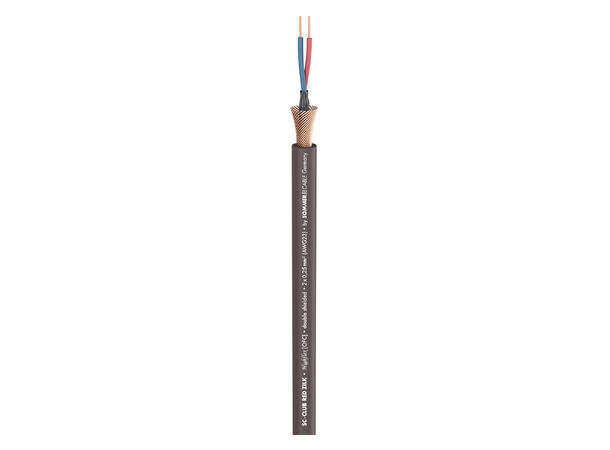

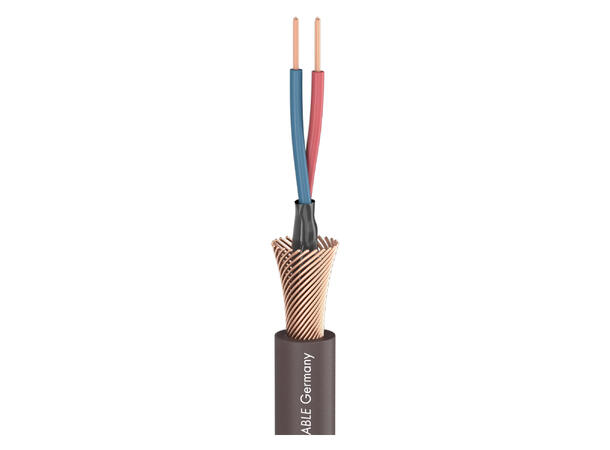

| Construction | (2LI2Y0,25mm²)(ST)CY |
|---|
| Jacket material | S-PVC |
|---|
| Jacket Ø mm | 7,30 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Inner conductor (audio) | 2 |
|---|
| Inner conductor (audio) mm² | 0,25 |
|---|
| AWG (audio) | 23 |
|---|
| Shielding | Copper spiral shielding 95 % + carbon semiconductor |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (audio) | 65 |
|---|
| Copper strand Ø (audio) mm | 0,07 |
|---|
| Conductor insulation material | HD-PP Gas-injected |
|---|
| Conductor insulation Ø mm | 1,55 |
|---|
| Weight per 1 m g | 53,4 |
|---|
| Fire load per m kWh | 0,2 |
|---|
| Style variant | round |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -25 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 7,3 |
|---|
| Height mm | 7,3 |
|---|
| Capac. cond./cond. per 1 m (audio) pF | 50 |
|---|
| Capacity wire/wire at 1 ft. (audio) pF | 15,24 |
|---|
| Capac. cond./shield. per 1 m (audio) pF | 100 |
|---|
| Capacity wire/electic screen at 1 ft. (audio) pF | 30,48 |
|---|
| Impedance O | 110 |
|---|
| Insulation resist. per 1 km GO | 0,2 |
|---|
| Insulation resist. per 1000 feet GO | 0,061 |
|---|
| Conductor resistance per 1 km O | 78 |
|---|
| Conductor resistance per 1000 ft. O | 23,7744 |
|---|
| Shield. resistance per 1 km O | 10 |
|---|
| Shield. resistance per 1000 ft. O | 3,048 |
|---|
| BPVo-Euroclass | Fca |
|---|
