The hymns of praise by cable...
Advantages:
- Neutral and loss-free audio transmission due to special copper strand design
- 100 % shielding due to dense helical copper mesh screen plus extra AL fleece/AL foil
- Professional technology at a budget price
Application:
- Professional studio and microphone technology
- Outdoor transmission/OB van
- Permanent stage application
Specifications:
| Article number | 201-0101 |
|---|

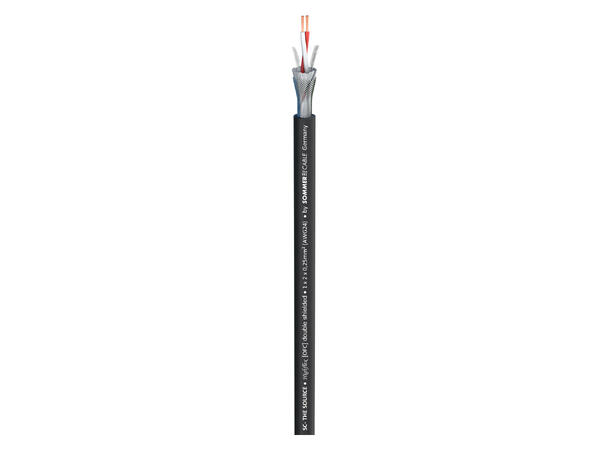

| Name | SC-Source MKII |
|---|
| EAN | 4049371004602 |
|---|
| Properties | PUR |
|---|
| Properties | Halogen-free / LSZH |
|---|
| Properties | Analog |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | ELA 100 V |
|---|
| Application area | Stage / live |
|---|
| Application area | Installation |
|---|
| Application area | Studio / Broadcast |
|---|
| Application | Microphone Cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | symmetrical |
|---|

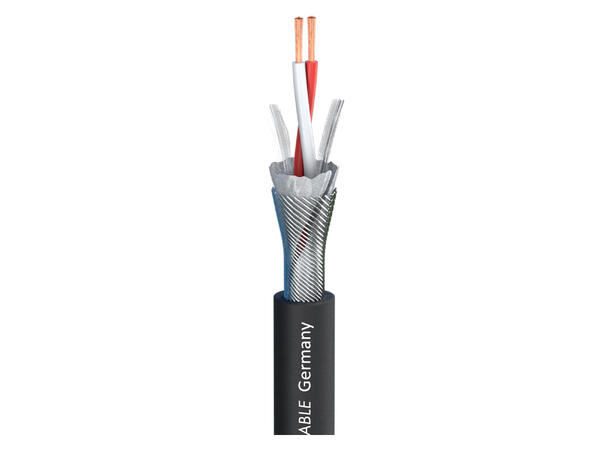

| Construction | (2LI2Y0,25mm²)(ST)DY |
|---|
| Jacket material | PUR |
|---|
| Jacket Ø mm | 6,50 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Inner conductor (audio) | 2 |
|---|
| Inner conductor (audio) mm² | 0,25 |
|---|
| Inner conductor Ø (audio) mm | 0,56 |
|---|
| AWG (audio) | 23 |
|---|
| Shielding | copper spiral sleeve tin-plated 95 % + AL-fleece |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (audio) | 128 |
|---|
| Copper strand Ø (audio) mm | 0,05 |
|---|
| Conductor insulation material | PE |
|---|
| Conductor insulation Ø mm | 1,55 |
|---|
| Weight per 1 m g | 48 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,21 |
|---|
| Style variant | round |
|---|
| Packing | 500 m spool |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -25 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 6,5 |
|---|
| Height mm | 6,5 |
|---|
| Capac. cond./cond. per 1 m (audio) pF | 60 |
|---|
| Capacity wire/wire at 1 ft. (audio) pF | 18,288 |
|---|
| Capac. cond./shield. per 1 m (audio) pF | 110 |
|---|
| Capacity wire/electic screen at 1 ft. (audio) pF | 33,528 |
|---|
| Insulation resist. per 1 km GO | 0,2 |
|---|
| Insulation resist. per 1000 feet GO | 0,061 |
|---|
| Insulation resist. per 1 km (audio) GO | 0,2 |
|---|
| Insulation resist. per 1000 feet (audio) GO | 0,061 |
|---|
| Conductor resistance per 1 km O | 78 |
|---|
| Conductor resistance per 1000 ft. O | 23,7744 |
|---|
| Shield. resistance per 1 km O | 25 |
|---|
| Shield. resistance per 1000 ft. O | 7,62 |
|---|
| BPVo-Euroclass | Fca |
|---|
