It brings colour to your life...

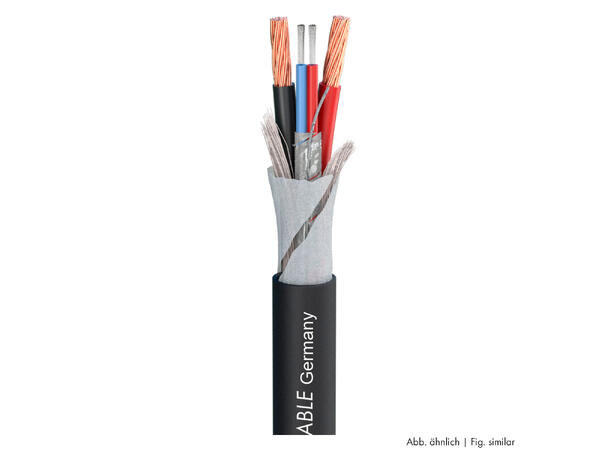

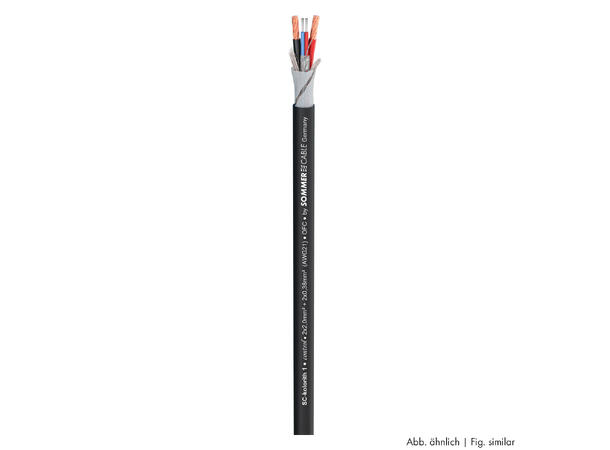

for the SC-KOLORITH is the perfect cable for use with low-voltage/IntelligentDC loudspeaker products from MEYER SOUND, building installation systems on BUS basis as well as for connecting colour changers. The SC-KOLORITH transmits data and power supply in one line. The pairwise stranded data line (wave impedance 110 O) is shielded and, due to the use of fine, tinned 0.10 mm single litz wires, guarantees high bending cycles. With 2 mm² the two voltage supply wires are ideally dimensioned for the transmission of voltages up to 50 V with low power losses.
Please note that it may be for the following offers to remnants, discontinued models and returns. A postproduction of items listed is possible only in exceptional cases, the products and their packaging may have slight differences in color and light soiling.
Advantages:
- Connection of building services engineering systems over distances of up to 1000 m
- Also suitable as audio/speaker hybrid cable
- Very compact, flexible and easy to use
Application:
- For connecting colour changers
- For installation purposes (Studio, illumination, building services engineering)
- Outdoor installation applications
- For connecting low-voltage / intelligent DC products made by Meyer Sound
Specifications:
| Article number | 500-0106-1#TSE |
|---|
| Name | SC-Kolorith 1 |
|---|
| EAN | 4049371089784 |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Properties | Analog |
|---|
| Properties | OFC oxygen free copper |
|---|
| Application area | ELA 100 V |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Installation |
|---|
| Application | BUS Control cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | symmetrical |
|---|
| Construction | 2LIY2,0mm²+(2LIY0,38mm²)(ST)Y |
|---|
| Construction (audio) | (2LIY0,38mm²)(ST) |
|---|
| Construction (power) | 2LIY2,0mm² |
|---|
| Jacket material | PVC |
|---|
| Jacket Ø mm | 7,40 |
|---|
| Jacket Ø (audio) mm | 2,50 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Number of Channels (power) | 1 |
|---|
| Inner conductor (audio) | 2 |
|---|
| Inner conductor (power) | 2 |
|---|
| Inner conductor (audio) mm² | 0,38 |
|---|
| Inner conductor (power) mm² | 2,00 |
|---|
| Inner conductor Ø (audio) mm | 0,67 |
|---|
| Inner conductor Ø (power) mm | 1,60 |
|---|
| AWG (audio) | 21 |
|---|
| AWG (power) | 14 |
|---|
| Shielding (audio) | AL / PT foil + filler strand |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (audio) | 45 |
|---|
| Copper strand Ø (audio) mm | 0,10 |
|---|
| Wire insulation material (audio) | PP |
|---|
| Conductor insulation Ø (audio) mm | 1,30 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,32 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| Temperature min. °C | -25 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 7,4 |
|---|
| Height mm | 7,4 |
|---|
| Capac. cond./cond. per 1 m (audio) pF | 65 |
|---|
| Capacity wire/wire at 1 ft. (audio) pF | 19,812 |
|---|
| Capac. cond./shield. per 1 m (audio) pF | 104 |
|---|
| Capacity wire/electic screen at 1 ft. (audio) pF | 31,6992 |
|---|
| Impedance O | 0 |
|---|
| Surge impedance (audio) O | 110 |
|---|
| Conductor resistance per 1 km O | 0 |
|---|
| Conductor resistance per 1000 ft. O | 0 |
|---|
| Conductor resistance per 1 km (audio) O | 60 |
|---|
| Conductor resistance per 1000 ft. (audio) O | 18,288 |
|---|
| Shield. resistance per 1 km O | 25 |
|---|
| Shield. resistance per 1000 ft. O | 7,62 |
|---|
| BPVo-Euroclass | Fca |
|---|
