Cable abuse without punishment...

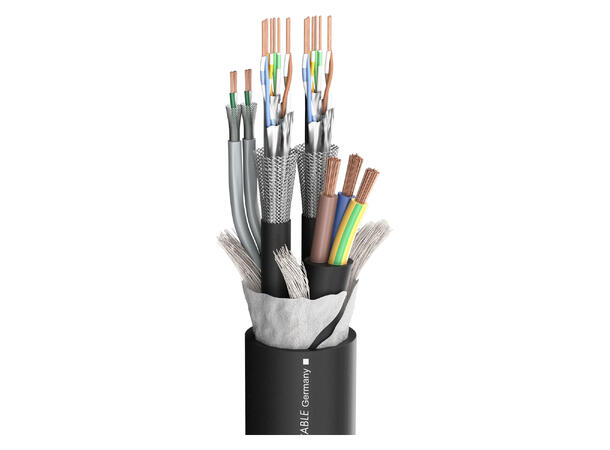

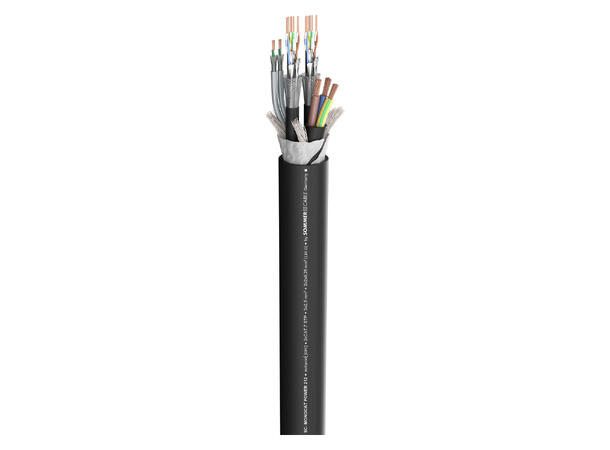

This combi line contains two CAT-cables in combination with two DMX-cables and insulated power cable. It s is equally suitable for permanent installations and mobile applications.
Advantages:
- LAN signal transmission incl. mains supply in one cable
- LAN cable also usable as an additional control line
Application:
- Control of DMX lighting consoles
- Mobile applications
- Analogue + digital audio multipair with LAN and power supply
- Permanent Installation
Specifications:
| Article number | 500-0191-2 |
|---|
| Name | SC-Monocat Power 212 |
|---|
| EAN | 4049371165143 |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Analog |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Stage / live |
|---|
| Application area | Installation |
|---|
| Application area | Studio / Broadcast |
|---|
| Application | hybrid cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | symmetrical |
|---|
| Construction | (3LI(9)Y3x2,5mm²)(11)Y+2x(4x(2LI2Yx0,57mm))(ST)CY+2x(2LI2Y0,25mm²)DYY |
|---|
| Construction (power) | (3LI(9)Y3x2,5mm²)(11)Y |
|---|
| Construction (AES/EBU, DMX) | 2x(2LI2Y0,25mm²)DY |
|---|
| Construction (network) | 2x(4x(2x0,57mm))(ST)CY |
|---|
| Jacket material | PVC |
|---|
| Jacket Ø mm | 21,80 |
|---|
| Number of Channels (power) | 1 |
|---|
| Number of Channels (AES/EBU, DMX) | 2 |
|---|
| Number of Channels (network) | 2 |
|---|
| Inner conductor (power) | 3 |
|---|
| Inner conductor (AES/EBU, DMX) | 2 |
|---|
| Inner conductor (network) | 8 |
|---|
| Inner conductor (power) mm² | 2,50 |
|---|
| Inner conductor (AES/EBU, DMX) mm² | 0,25 |
|---|
| Inner conductor Ø (network) mm | 0,57 |
|---|
| AWG (AES/EBU, DMX) | 23 |
|---|
| Shielding (AES/EBU, DMX) | Copper spiral, tin-plated |
|---|
| Shielding (network) | PiMF + tinned copper braid |
|---|
| Shielding factor % | 100 |
|---|
| Conductor insulation material | Foam / Skin-PE |
|---|
| Weight per 1 m g | 470 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 2,38 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| CAT-Type | CAT.7 |
|---|
| Max. section length m | 110 |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 60 |
|---|
| Width mm | 21,8 |
|---|
| Height mm | 21,8 |
|---|
| Capacity wire/wire at 1m (network) pF | 44 |
|---|
| Capacity wire/wire at 1 ft. (network) pF | 13,4112 |
|---|
| Impedance (network) O | 100 |
|---|
| Insulation resist. per 1km (power) GO | 5 |
|---|
| Insulation resist. per 1000 feet (power) GO | 1,524 |
|---|
| Test voltage V | 2000 |
|---|
| Nominal voltage (power) V | 500 |
|---|
| Operating voltage (power) V | 300 |
|---|
| BPVo-Euroclass | Fca |
|---|
