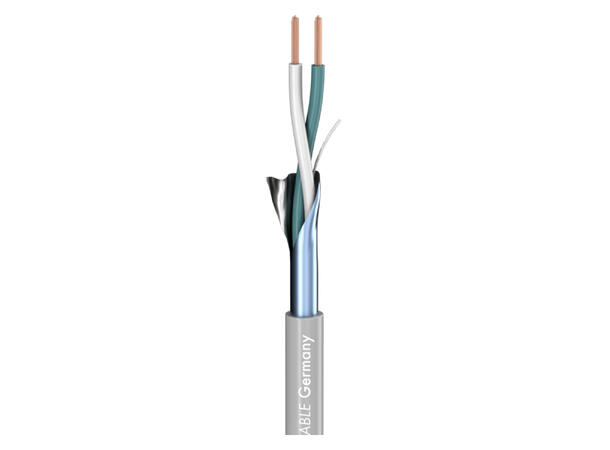

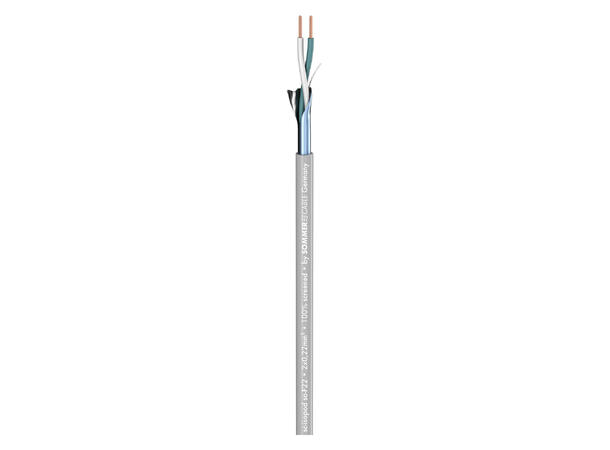

SOMMER Isopod SO-F22D Patchkabel PP
2x 0,22 mm², PVC Ø 3,30 mm, grå
16,-
The memory cable...
Advantages:
Quick and easy to handle
Robust plastic jacket for long life
Easy to lay thanks to “memory effect”
Application:
Internal wiring of racks, audio and hifi components
Specifications:
Article number
500-0406
Name
SC-Isopod SO-F22
EAN
4049371005432
Properties
OFC oxygen free copper
Properties
Analog
Properties
Digital 110 O AES / EBU
Application area
Installation
Application
Patch cable
Colour
grey
Colour detailed
grey
Signal transmission
symmetrical
Construction
(2LI2Y0,22mm²)(ST)Y
Jacket material
PVC
Jacket Ø mm
3,30
Number of Channels (audio)
1
Inner conductor (audio)
2
Inner conductor (audio) mm²
0,22
Inner conductor Ø (audio) mm
0,53
AWG (audio)
24
Shielding
AL / PT foil + AL / PT foil + filler strand, tin-plated
Shielding factor %
100
Copper strands (audio)
7
Copper strand Ø (audio) mm
0,20
Conductor insulation material
PP
Conductor insulation Ø mm
1,30
Weight per 1 m g
16
Fire load per m kWh
0,05
Style variant
round
Packing
200 m spool
Temperature min. °C
-25
Temperature max. °C
70
Width mm
3,3
Height mm
3,3
Capac. cond./cond. per 1 m (audio) pF
74
Capacity wire/wire at 1 ft. (audio) pF
22,5552
Capac. cond./shield. per 1 m (audio) pF
143
Capacity wire/electic screen at 1 ft. (audio) pF
43,5864
Impedance O
110
Surge impedance (audio) O
110
Insulation resist. per 1 km GO
0,2
Insulation resist. per 1000 feet GO
0,061
Insulation resist. per 1 km (audio) GO
0,2
Insulation resist. per 1000 feet (audio) GO
0,061
Conductor resistance per 1 km O
88
Conductor resistance per 1000 ft. O
26,8224
Shield. resistance per 1 km O
75
Shield. resistance per 1000 ft. O
22,86
BPVo-Euroclass
Fca
