Cable abuse without punishment...

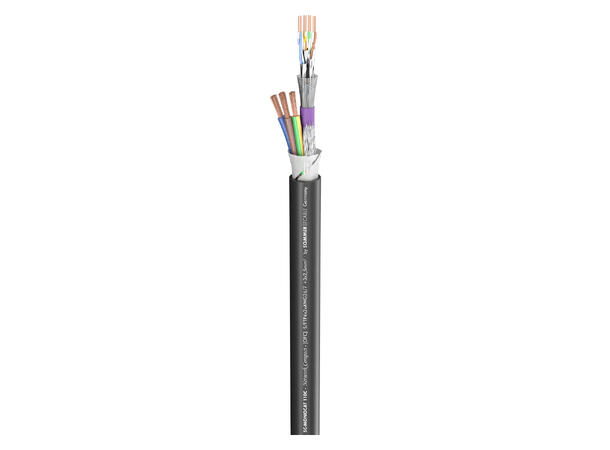

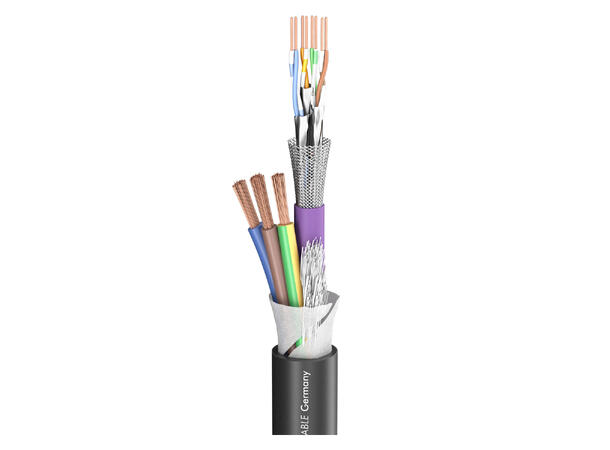

This combi line contains one CAT-cable in combination with a power cable. The SC-MONOCAT POWER Series is equally suitable for permanent installations and mobile applications.
Advantages:
- LAN signal transmission incl. mains supply in one cable
- LAN cable also usable as an additional control line
Application:
Specifications:
| Article number | 500-0151-1 |
|---|
| Name | SC-Monocat 110C |
|---|
| EAN | 4049371050975 |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Analog |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Stage / live |
|---|
| Application area | Installation |
|---|
| Application | hybrid cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|

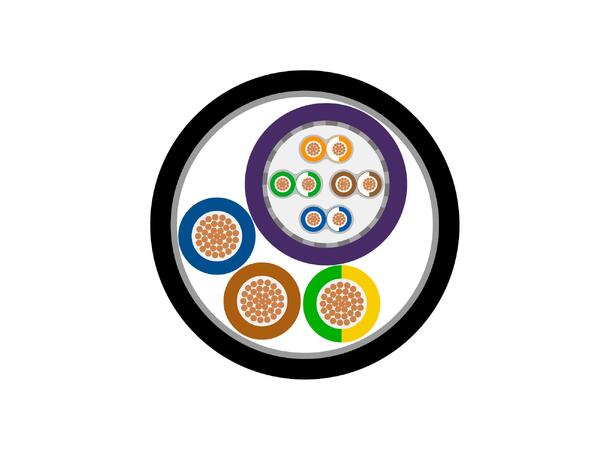

| Construction | (3LIY3x2,5mm²)Y+1x(4x(2LI2Yx0,14mm²))(ST)CYY |
|---|
| Construction (power) | (3LIY3x2,5mm²)Y |
|---|
| Construction (network) | 1x(4x(2LI2Yx0,14mm²))(ST)CYY |
|---|
| Jacket material | PVC |
|---|
| Jacket Ø mm | 13,80 |
|---|
| Inner conductor (power) | 3 |
|---|
| Inner conductor (network) | 8 |
|---|
| Inner conductor (power) mm² | 2,50 |
|---|
| Inner conductor (network) mm² | 0,14 |
|---|
| Shielding (network) | AL / PT-foil + Copper braiding tin-plated |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (network) | 7 |
|---|
| Copper strand Ø (network) mm | 0,16 |
|---|
| Conductor insulation material | Foam / Skin-PE |
|---|
| Weight per 1 m g | 254 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,77 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| CAT-Type | CAT.7 |
|---|
| Max. section length m | 100 |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 13,8 |
|---|
| Height mm | 13,8 |
|---|
| Capacity wire/wire at 1m (network) pF | 44 |
|---|
| Capacity wire/wire at 1 ft. (network) pF | 13,4112 |
|---|
| Impedance (network) O | 100 |
|---|
| Insulation resist. per 1km (power) GO | 5 |
|---|
| Insulation resist. per 1000 feet (power) GO | 1,524 |
|---|
| Test voltage V | 2000 |
|---|
| Nominal voltage (power) V | 300 |
|---|
| Operating voltage (power) V | 300 |
|---|
| BPVo-Euroclass | Fca |
|---|
