Cable abuse without punishment...

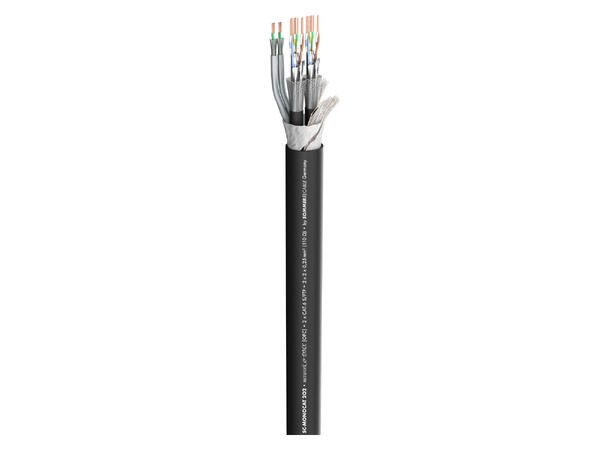

This combi line contains two CAT-cable plus two DMX-cables and is suitable for permanent installations and mobile applications.
Advantages:
- LAN signal transmission
- LAN cable also usable as an additional control line
Application:
- Control of DMX lighting consoles
- Mobile applications
- Analogue + digital audio multipair with LAN
- Permanent Installation
Specifications:
| Article number | 500-0161-2 |
|---|
| Name | SC-Monocat 202 |
|---|
| EAN | 4049371050982 |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Analog |
|---|
| Application area | Stage / live |
|---|
| Application area | Installation |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application | hybrid cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | symmetrical |
|---|

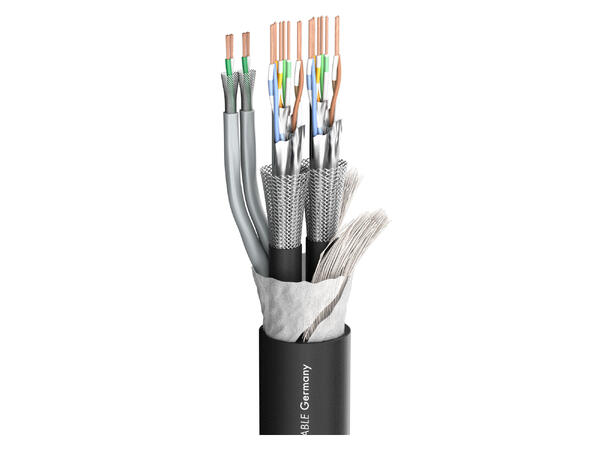

| Construction | 2x(4x(2LI2Yx0,14mm²))(ST)CY+2x(2LI2Y0,25mm²)DYY |
|---|
| Construction (AES/EBU, DMX) | 2x(2LI2Y0,25mm²)DY |
|---|
| Construction (network) | 2x(4x(2LI2Yx0,14mm²))(ST)CY |
|---|
| Jacket material | PVC |
|---|
| Jacket Ø mm | 15,60 |
|---|
| Number of Channels (AES/EBU, DMX) | 2 |
|---|
| Number of Channels (network) | 2 |
|---|
| Inner conductor (AES/EBU, DMX) | 2 |
|---|
| Inner conductor (network) | 8 |
|---|
| Inner conductor (AES/EBU, DMX) mm² | 0,25 |
|---|
| Inner conductor (network) mm² | 0,14 |
|---|
| AWG (AES/EBU, DMX) | 23 |
|---|
| Shielding (AES/EBU, DMX) | Copper spiral, tin-plated |
|---|
| Shielding (network) | AL / PT-foil + Copper braiding tin-plated |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (AES/EBU, DMX) | 7 |
|---|
| Copper strands (network) | 7 |
|---|
| Copper strand Ø (AES/EBU, DMX) mm | 0,20 |
|---|
| Copper strand Ø (network) mm | 0,16 |
|---|
| Conductor insulation material | Foam / Skin-PE |
|---|
| Conductor insulation Ø mm | 0,00 |
|---|
| Weight per 1 m g | 380 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 1,01 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| CAT-Type | CAT.7 |
|---|
| Max. section length m | 100 |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 75 |
|---|
| Width mm | 15,6 |
|---|
| Height mm | 15,6 |
|---|
| Capacity wire/wire at 1m (network) pF | 44 |
|---|
| Capacity wire/wire at 1 ft. (network) pF | 13,4112 |
|---|
| Impedance (network) O | 100 |
|---|
| Insulation resist. per 1 km GO | 0 |
|---|
| Insulation resist. per 1000 feet GO | 0 |
|---|
| BPVo-Euroclass | Fca |
|---|
