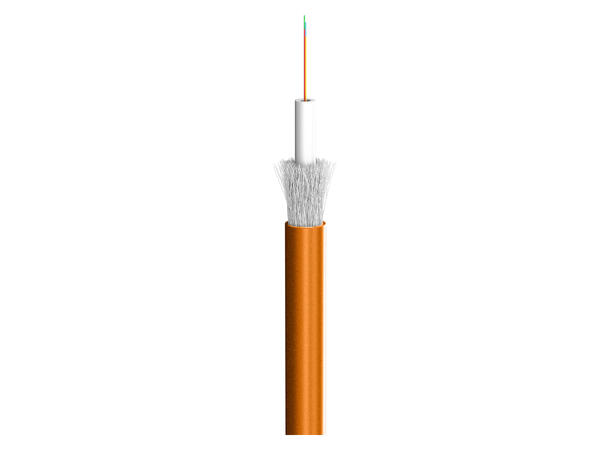

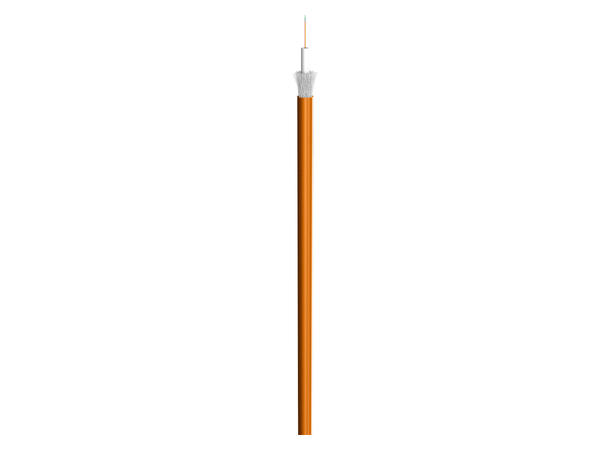

SOMMER Octopus-G Fiberkabel, OM2

4 x 50/125 µm OM2, LSZH, oransje

Varenr: 141474
Alt. varenr: 590-0815-04
27,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

WARP 1...

light with our SC-Octopus-G LWL cable. With it you can transmit your digital audio and video signals across large distances of up to 2 km (at 100 MBit/s). The multimode gradient fibres with a core diameter of 50 µm (insulation/cladding gauge 125 µm) is available for bandwidth: OM2 = 500 MHz.

The Mini Breakout LWL lines can be used for indoor floor applications and rack cabling.


Advantages:

  • Digital signal transmission over long distances
  • Compact, lightweight, robust and metal free
  • Die-electrical glass fibre armouring (rodent protection)

Application:

  • High-quality, fast connection for the transmission of digital signals
  • Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
  • Indoor and outdoor transmissions with long transmission lengths


Specifications:

Article number590-0815-04
NameSC-Octopus-G
EAN4049371051392
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaInstallation
ApplicationOptical fiber
Colourorange
Colour detailedorange
ConstructionI-V(ZN)H
Jacket materialLSZH
Jacket Ø mm4,30
Weight per 1 m g18
Style variantround
Core (fiber) µm50
Cladding (fiber) µm125
Fibres4
QualityOM2
Temperature min. °C-20
Temperature max. °C60
Width mm4,3
Height mm4,3
Old article number590-0811-04
BPVo-EuroclassFca
