SOMMER Vector Plus 7 DZ Videokabel 1 x 1,20, PMB Ø 21,80 mm, grønn SOMMER Vector Plus 7 DZ Videokabel 1 x 1,20, PMB Ø 21,80 mm, grønn SOMMER Vector Plus 7 DZ Videokabel 1 x 1,20, PMB Ø 21,80 mm, grønn

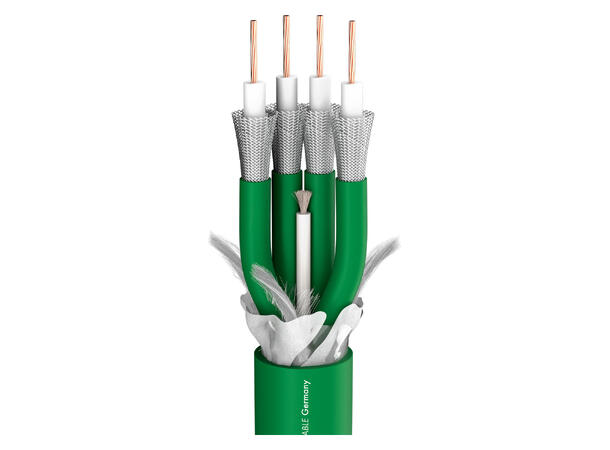

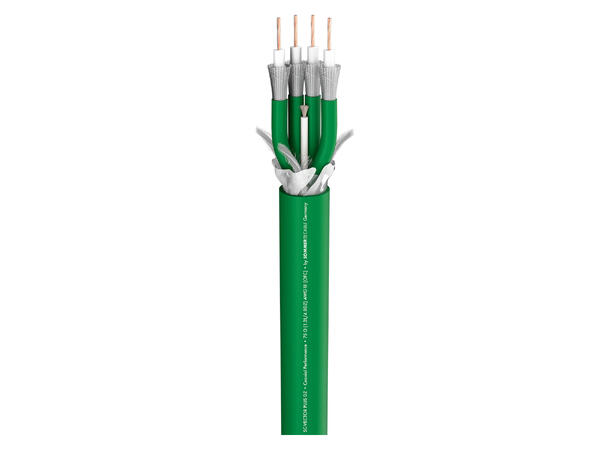

SOMMER Vector Plus 7 DZ Videokabel

1 x 1,20, PMB Ø 21,80 mm, grønn

Varenr: 141723
Alt. varenr: 600-0214-04
227,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

XG-SDI in superflex format...

The SC-VECTOR PLUS 1.2L/4.8DZ from SOMMER CABLE is perfectly suitable for the daily mobile use on a drum. The PUR-MASTER-BLEND jacket is highly flexible and also extremely robust. Thus the interior remains mechanically well protected and the HD transmission quality constant. Each HD-SDI conductor is organized in groups of litz wires and surrounded by a gas-injected PE insulation (incl. Protective lacquer) for optimum damping qualities. A flexible shielding construction is provided by a tight, double CU braid. Multi-DZ is the ideal cable for all G-SDI live transmissions – both indoor and outdoor.


Advantages:

  • Excellent transmission quality due to foam insulation
  • Steadily consistent values
  • UV- and notch-resistant PUR jacket, rodent protection

Application:

  • Double-shielded cable for digital video transmissions and professional video equipment
  • For professional broadcast use
  • Highly flexible and easy to reel


Specifications:

Article number600-0214-04
NameSC-Vector Plus 7 DZ
EAN4049371311212
PropertiesSDI
PropertiesHDTV
PropertiesDigital 75 O
PropertiesAnalog
PropertiesOFC oxygen free copper
PropertiesPUR Master Blend
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaELA 100 V
Applicationvideo cable
Colourgreen
Colour detailedgreen

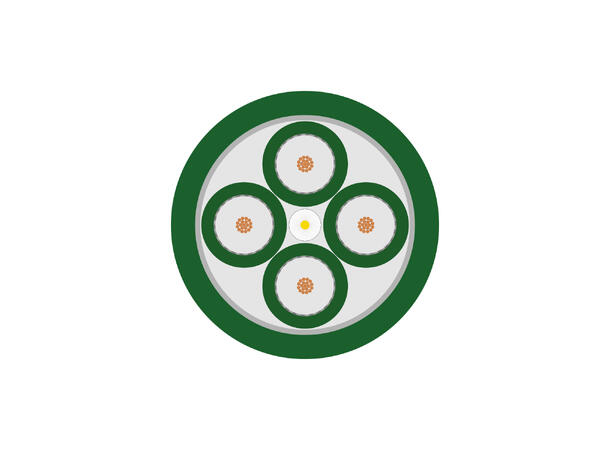

Construction4x02YSCCH1,2L/4,8
Jacket materialPMB
Jacket Ø mm21,80
Number of Channels (video)1
Inner conductor (video)4
Inner conductor (video) mm²0,88
Inner conductor Ø (video) mm1,20
AWG (video)18
Shielding2 x Copper braiding tin-plated
Shielding factor %100
Copper strands (video)7
Copper strand Ø (video) mm0,40
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm4,80
Weight per 1 m g520
Style variantround
Packing100 m, bulk stock
Velocity factor0,86
Temperature min. °C-30
Temperature max. °C80
Max. Transmission length (3G-SDI) m155
Max. Transmission length (6G-SDI) m60
Width mm21,8
Height mm21,8
Capacity wire/electic screen at 1m (video) pF53
Capacity wire/electic screen at 1 ft. (video) pF16,1544
Damping at 200 MHz (100m & 20° C) dB10,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB3,2918
Damping at 470 MHz (100m & 20° C) dB16,9
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB5,1511
Damping at 862 MHz (100m & 20° C) dB23,4
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB7,1323
Damping at 1000 MHz (100m & 20° C) dB25,1
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB7,6505
Damping at 1485 MHz (100m & 20° C) dB31,2
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB9,5098
Damping at 1750 MHz (100m & 20° C) dB34,3
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB10,4546
Damping at 2150 MHz (100m & 20° C) dB38,5
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB11,7348
Damping at 3000 MHz (100m & 20° C) dB46,8
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB14,2646
Impedance O75
Conductor resistance per 1 km O20
Conductor resistance per 1000 ft. O6,096
Shield. resistance per 1 km O5,6
Shield. resistance per 1000 ft. O1,7069
Available sinceV07.0
BPVo-EuroclassFca
