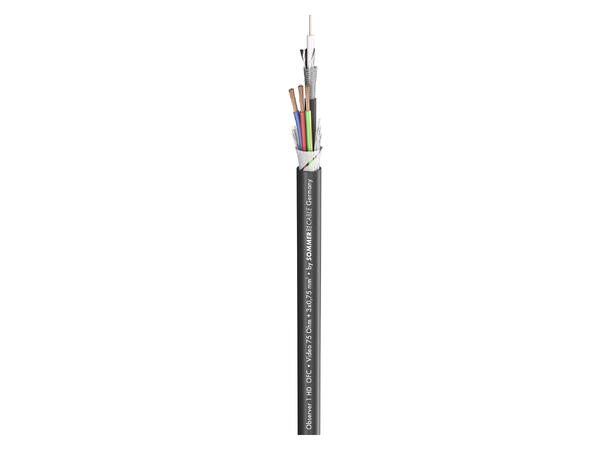

When cables get married...
Advantages:
- 75 O cable and power line in one cable
- Very durable and rugged due to high-quality PVC jacket
- Very good damping values of the 75 O video line
- Excellent shielding owing to the combination of Cu mesh screen plus AL/PT foil
Application:
- Control of surveillance monitors
- Studio and fixed installations
Specifications:
| Article number | 600-2101 |
|---|
| Name | SC-Observer 1 HD |
|---|
| EAN | 4049371003995 |
|---|
| Properties | Analog |
|---|
| Properties | SDI |
|---|
| Properties | Digital 75 O |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Underwater / submerged |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Installation |
|---|
| Application area | Studio / Broadcast |
|---|
| Application | Video- & Power cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|

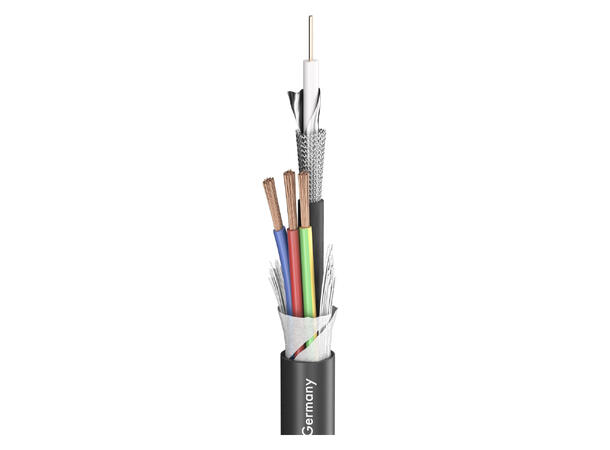

| Construction | LI02YSC12Y0,60mm+3x0,75mm²Y |
|---|
| Construction (video) | LI02YSC12Y0,60mm |
|---|
| Construction (power) | 3 x 0,75 mm² |
|---|
| Jacket material | S-PVC |
|---|
| Jacket Ø mm | 9,00 |
|---|
| Jacket Ø (power) mm | 0,00 |
|---|
| Number of Channels (video) | 1 |
|---|
| Number of Channels (power) | 1 |
|---|
| Inner conductor (video) | 1 |
|---|
| Inner conductor (power) | 3 |
|---|
| Inner conductor (video) mm² | 0,28 |
|---|
| Inner conductor (power) mm² | 0,75 |
|---|
| Inner conductor Ø (video) mm | 0,60 |
|---|
| Inner conductor Ø (power) mm | 0,98 |
|---|
| AWG (video) | 23 |
|---|
| AWG (power) | 18 |
|---|
| Shielding (video) | Copper braiding + AL / PT foil |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (video) | 1 |
|---|
| Copper strand Ø (video) mm | 0,60 |
|---|
| Wire insulation material (video) | Gas Injected-PE |
|---|
| Conductor insulation Ø (video) mm | 2,80 |
|---|
| Weight per 1 m g | 110 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,38 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 80 |
|---|
| Width mm | 9 |
|---|
| Height mm | 9 |
|---|
| Capacity wire/electic screen at 1m (video) pF | 55 |
|---|
| Capacity wire/electic screen at 1 ft. (video) pF | 16,764 |
|---|

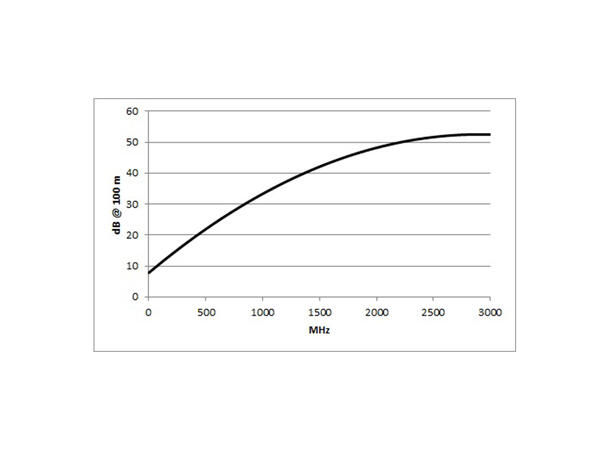

| Damping at 50 MHz (100m & 20° C) dB | 7,3 |
|---|
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB | 2,225 |
|---|
| Damping at 100 MHz (100m & 20° C) dB | 10,8 |
|---|
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB | 3,2918 |
|---|
| Damping at 200 MHz (100m & 20° C) dB | 14,5 |
|---|
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB | 4,4196 |
|---|
| Damping at 470 MHz (100m & 20° C) dB | 22,7 |
|---|
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB | 6,919 |
|---|
| Damping at 862 MHz (100m & 20° C) dB | 31,1 |
|---|
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB | 9,4793 |
|---|
| Damping at 1000 MHz (100m & 20° C) dB | 33,6 |
|---|
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB | 10,2413 |
|---|
| Damping at 1485 MHz (100m & 20° C) dB | 41,2 |
|---|
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB | 12,5578 |
|---|
| Damping at 1750 MHz (100m & 20° C) dB | 45,5 |
|---|
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB | 13,8684 |
|---|
| Damping at 2150 MHz (100m & 20° C) dB | 49,5 |
|---|
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB | 15,0876 |
|---|
| Impedance (video) O | 75 |
|---|
| Conductor resistance per 1 km O | 62,2 |
|---|
| Conductor resistance per 1000 ft. O | 18,9586 |
|---|
| BPVo-Euroclass | Fca |
|---|
