Configuration:
100,00 m SC-Mercator; 4 x CAT.7; PVC Ø 22,50 mm; black (580-0311-04)
1 x SCHILL Kabeltrommel, SK4602.RM-SW, core: 280 mm, thread width: 500 mm, metal (SK4602.RM-SW)
4 x NE8FDV-YK-D
1 x SYG-K4

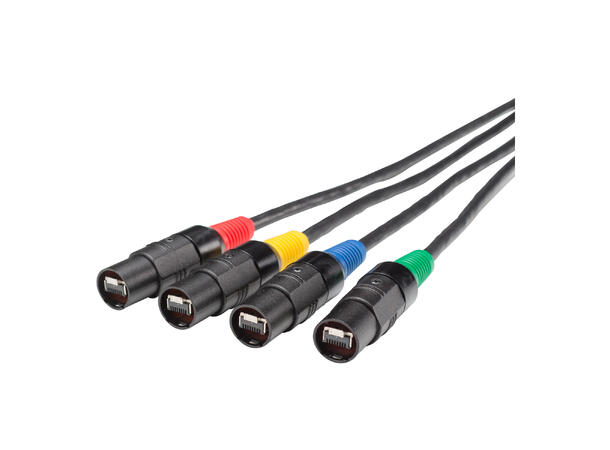

4 x RJ45 CAT.6a, 8-pole , metal-, IDC-male connector, gold plated contact(s), straight, silver-grey (RJ45C6XL)
4 x HICON Connector housing XLR format for RJ45C6XL/SC-Mercator CAT.7 PUR XL, black (HI-C6XL-HD)
Specifications:
| Length m | 100 |
|---|
| Article number | K44DK |
|---|
| Name | SC-Mercator CAT.7 |
|---|
| Brand | Sommer cable |
|---|
| Application | network cable |
|---|
| Inner conductor | 8 |
|---|
| Inner conductor mm² | 0,22 |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Connector-Brand | HIROSE |
|---|
| Additional function | on cable spool |
|---|
| Type | RJ45 |
|---|
| Type (detailed) | RJ45C6XL |
|---|
| Type (detailed) | HI-RJ45-HD |
|---|
| Type (detailed) | NE8FD |
|---|
