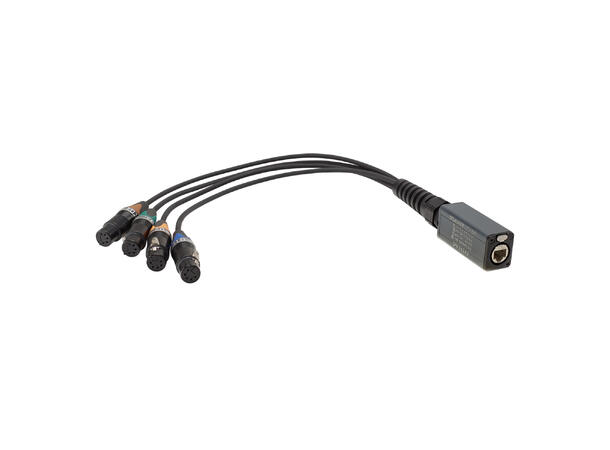

With the splice adapters shown here this can be realised now in a rugged form . For this purpose we employ our robust and very flexible SC-SEMICOLON 2 digital patch line in combination with NEUTRIK EtherCon and XLR connectors . The RJ45 socket sits in a solid metal housing which also contains the cable screw joint . In the typical SOMMER style the channel numbers are fixed clearly readable on the connectors.

Channel 1 = Pin 4+5
Channel 2 = Pin 3+6
Channel 3 = Pin 1+2
Channel 4 = Pin 7+8
