SOMMER Monocat 303 Hybridkabel 3xCAT.7, DMX: 3x2x0,25 mm², PVC, sort SOMMER Monocat 303 Hybridkabel 3xCAT.7, DMX: 3x2x0,25 mm², PVC, sort SOMMER Monocat 303 Hybridkabel 3xCAT.7, DMX: 3x2x0,25 mm², PVC, sort

SOMMER Monocat 303 Hybridkabel

3xCAT.7, DMX: 3x2x0,25 mm², PVC, sort

Varenr: 186393
Alt. varenr: 500-0161-3
321,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Cable abuse without punishment...

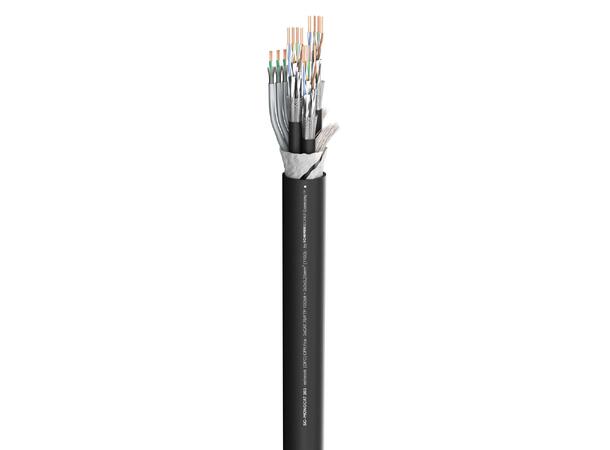

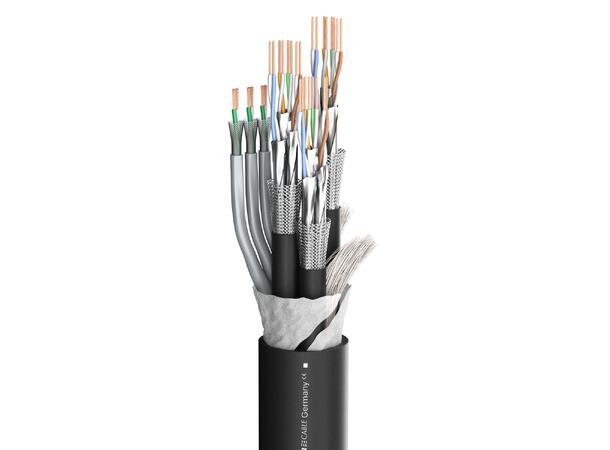

This combination cable consists of three CAT cables interconnected with three DMX cables and is suitable for fixed installations as well as for mobile use.


Advantages:

  • LAN signal transmission
  • LAN cable also usable as an additional control line
  • Application:
  • Control of DMX lighting consoles
  • Mobile applications
  • Analogue + digital audio multipair with LAN
  • Permanent Installation

Article number: 500-0161-3
Name: SC-Monocat 303
EAN: 4049371539067
Properties: Analog, OFC oxygen free copper
Application area: Installation, Mobile outdoor / indoor, Stage / live, Studio / Broadcast
Application: hybrid cable
Colour: black
Signal transmission: symmetrical

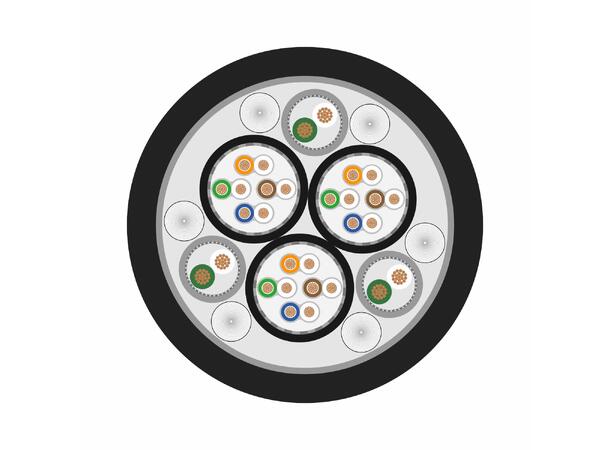

Construction: 3x(4x(2LI2Yx0,14mm²))(ST)CY+3x(2LI2Y0,25mm²)DY]Y
Construction (AES/EBU, DMX): 3x(2LI2Y0,25mm²)DY
Construction (network): 3x(4x(2LI2Yx0,14mm²))(ST)CY
Jacket material: PVC
Jacket Ø [mm]: 18.00
Jacket Ø ["]: 0.7087
Jacket Ø (AES/EBU, DMX) [mm]: 3,40
Jacket Ø (AES/EBU, DMX) ["]: 0.1339
Jacket Ø (network) [mm]: 6,40
Jacket Ø (network) ["]: 0.252
Number of Channels (AES/EBU, DMX): 3
Number of Channels (network): 3
Inner conductor (AES/EBU, DMX): 2
Inner conductor (network): 8
Inner conductor (network) [sqin]: 0.0002
Inner conductor (AES/EBU, DMX) [mm²]: 0.25
Inner conductor (AES/EBU, DMX) [sqin]: 0.0004
Inner conductor (network) [mm²]: 0,14
AWG (AES/EBU, DMX): 23
Shielding (AES/EBU, DMX): Copper spiral, tin-plated
Shielding (network): AL / PT-foil + Copper braiding tin-plated
Shielding factor [%]: 100
Conductor insulation material: Foam / Skin-PE
Conductor insulation Ø (AES/EBU, DMX) [mm]: 1,30
Conductor insulation Ø (AES/EBU, DMX) ["]: 0.0512
Conductor insulation Ø (network) [mm]: 1,05
Conductor insulation Ø (network) ["]: 0.0413
Weight per 1 m [g]: 390
Weight at 1000 ft. [lbs]: 262.4372
UV resistance: high
Style variant: round
Packing: bulk stock
CAT-Type: CAT.7
Max. section length [m]: 100
Max. section length [ft]: 328.084
Temperature min. [°C]: -20
Temperature max. [°C]: 75
Width [mm]: 18
Width ["]: 0.7087
Height [mm]: 18
Height ["]: 0.7087
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF]: 47
Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF]: 14.3256
Capacity wire/wire at 1m (network) [pF]: 44
Capacity wire/wire at 1 ft. (network) [pF]: 13.4112
Surge impedance (AES/EBU, DMX) [O]: 110
Impedance (network) [O]: 100
Insulation resist. per 1 km (AES/EBU, DMX) [GO]: 5
Insulation resist. per 1000 feet (AES/EBU, DMX) [GO]: 1.524
Insulation resist. per 1 km (network) [GO]: 5
Insulation resist. per 1000 feet (network) [GO]: 1.524
Conductor resistance per 1 km (AES/EBU, DMX) [O]: 87
Conductor resistance per 1000 ft. (AES/EBU, DMX) [O]: 26.5176
Conductor resistance per 1 km (network) [O]: 143
Conductor resistance per 1000 ft. (network) [O]: 43.5864
BPVo-Euroclass: Fca
