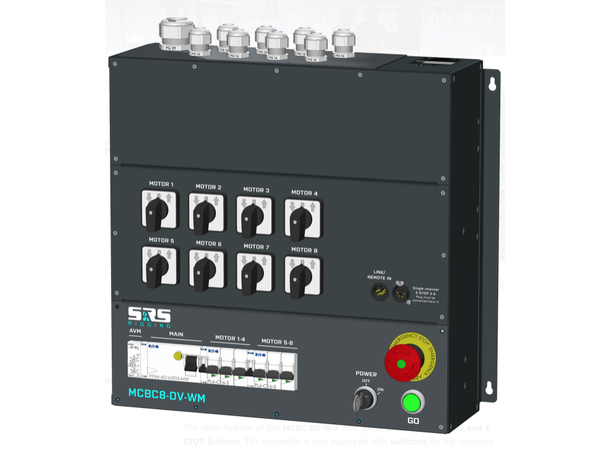

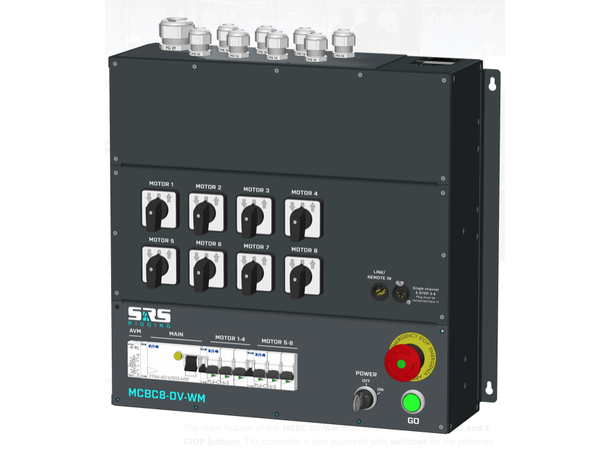

PS Bildet viser veggmontart variant

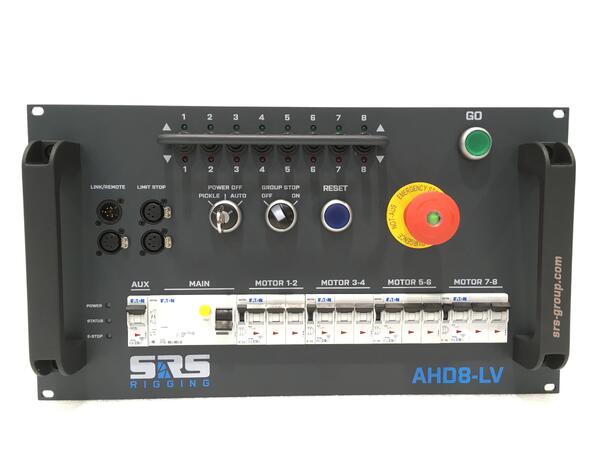

8ch LV Digital 19 inch 6U Controller AHD Screw Terminal Link

• 19 inch 6HE High Unit weight ~ 26kg
• Linkable up to 10 units ( to create a 80ch hoist control system )
• Auto phase Check & Correction
• Max Ch load 1,9kW
• Individual Channel direction selection via toggle switches with LED status
• Input cable 32a 5p Red CEE 400v 50 Hertz 3f + Neutral + Ground. 32a MCB + RCD

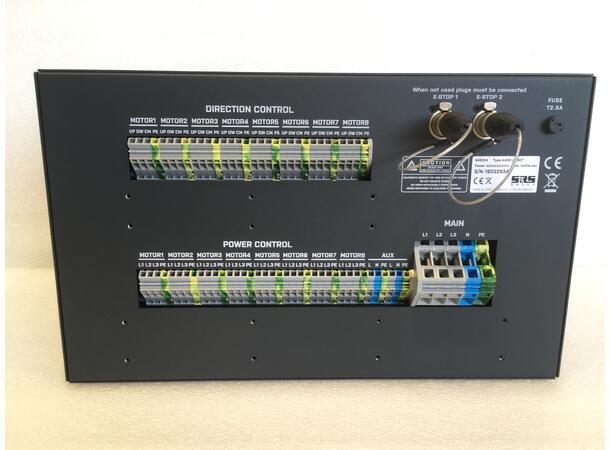

• Outputs Screw terminals 4 x 10a MCB breaker + group stop function
• Output 2 x Powercon/Shuko 220v 50 Hertz 1f + Neutral + Ground. 10a breaker
• 5p Neutrik™ XLR in/out Digital Link & Remote connection
• 4p Neutrik™ XLR in/out Loadcell / Limit stop connection
