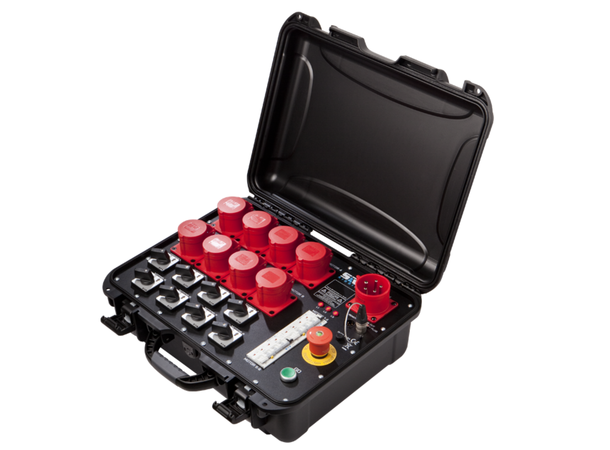

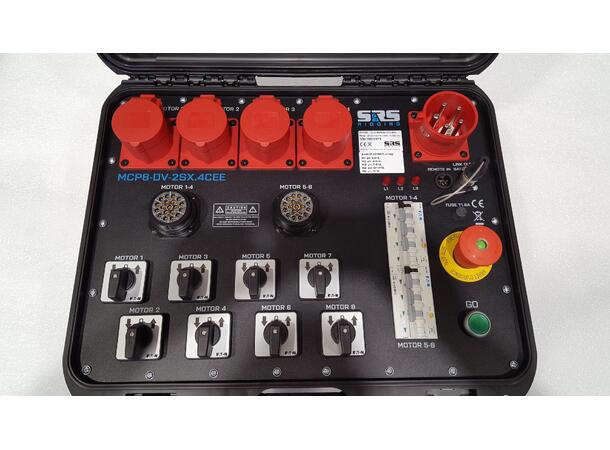

MCP8-DV was designed to fulfill all the requirements of clients who are looking for a cost efficient alternative of hoist controller with premium quality. It is equipped with high quality Schneider Electric / Eaton components and is housed in a robust plastic case.

The main benefit is the link feature for GO and E-STOP buttons of several linked devices.

Compatible with:

• CM lodestar
• GIS
• Trabes
• Prolyft
• Verlinde/Stagemaker

• Controls up to 8 direct voltage hoists
• Manual Phase Align (MPA) using power input connector
• Hoist types: BGV D8, BGV D8+
• Mains connection: CEE32/5p
• Hoist connection: CEE16/4p and/or multi-pin connectors
• Link connector
• Power Protection: 2xRCBO C16/30mA

• Housing: Plastic case
• Size: 406 x 503 x 193mm
• Weight: 11-12kg
