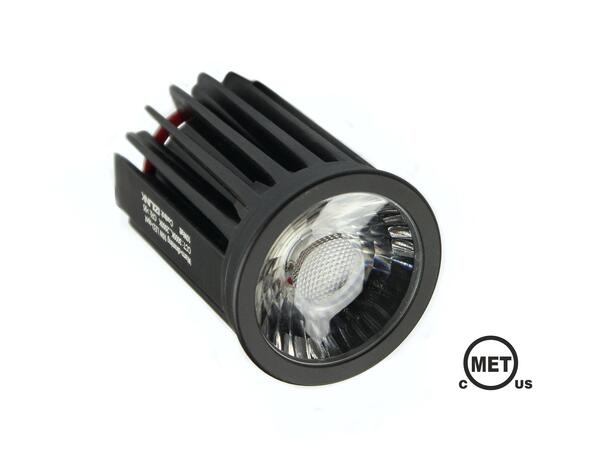

TDE-lighttech has developed a new and affordable MR16 Warm Dimming LED module to complement the existing Mood Lighting range. Moodspot WD800-B incorporates Warm Dimming LED technology, allowing you to gradually emit a warmer light as the LED module dims down.

Due to the highly efficient LED driver technology the Moodspot WD800-B is capable of dimming smooth and flicker free down to 0%, replicating everything you love about halogen style dimming but with al the energy savings and longevity benefits LED lighting has to offer.

The colour temperature ranges from 3000K~2000K with a high colour rendering index (CRI > 95) ensuring vivid colours and realistic skin tone.

• Warm dimming 1800K~3000K CCT-range
• High CRI>95
• Perfect dimmable 100-0%

Technical specifications

LED

• Colour Temperature 3000K~2000K
• Colour rendering CRI > 95 / R9 > 90
• Lumen output 1000 lumen (3000K)
• Optics 15° / 24° / 36° / 60°
• Certifications cMETus E114112 / Glow-wire test 2033673.01

Power

• Maximum forward voltage 36VDC
• Maximum current 300mA
• Consumption 10 Watt

Control

• External driver options downlight Mains Dimmable / IZI-Link / DMX512
• External driver option trackspot Mains Dimmable

Material

• Housing material Aluminium + PMMA

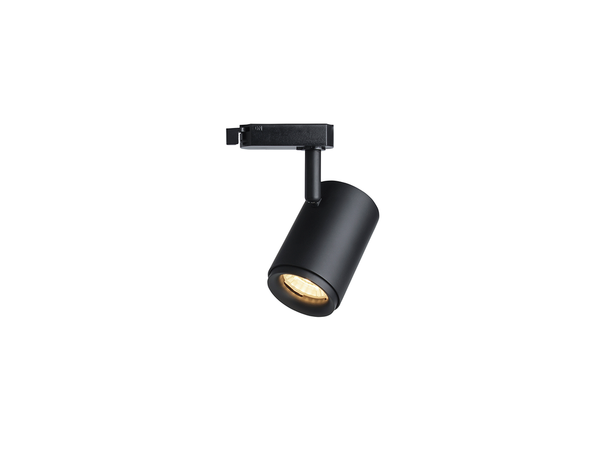

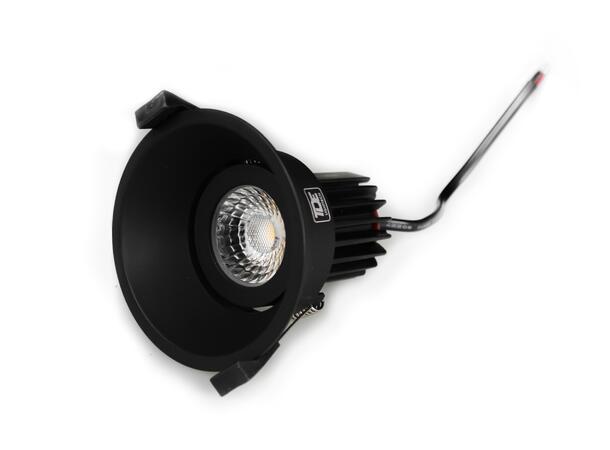

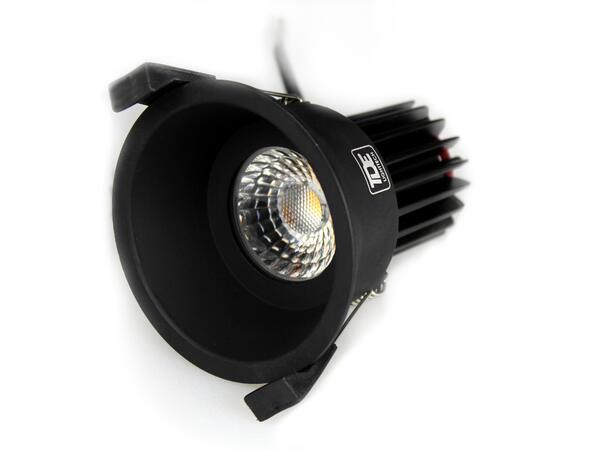

• Versions Downlight / Track
• Flange colours White / Black
• Trackspot adapter 3-phase
