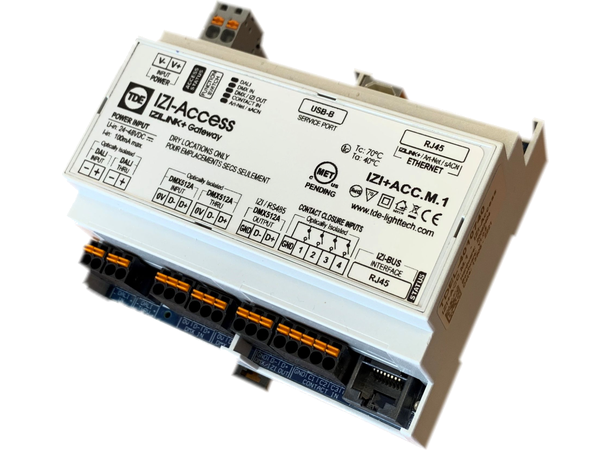

IZI-Access Gateway

The IZI-Access is the heart of the IZI-Link system and this gateway connects the IZI-Link system with Art-Net and sACN (Ethernet), OSC, DMX-512A (RS485), and DALI.

The IZI-Access is housed in a small DIN-Rail module and has a wide range of connection options, making the module a very useful node.

The special software environment (IZI-Supervisor), web interface, and the numerous standard equipment and functions make this gateway universally applicable.

Features

• Art-Net/sACN, DMX512, DALI & OSC Gateway
• IZI-Link(+) interface
• Programmable scenes, sequences and soft-patches
• Programmable (soft) contact inputs

Technical Specifications

Power

• Input voltage: 24 ... 48VDC
• Maximum power consumption: 2.4 Watt
• Maximum input current: 100mA

Control

• Control inputs: RJ45 - Ethernet / DMX512 / DALI / USB
• Dry contact inputs: 4 galvanically isolated
• Protocols: Art-Net / sACN / OSC / DMX-512A / DALI / IZI-Link / IZI-Link+ / RS485

Material

• Housing: DIN-rail (6 module width)
• Power input: 2-pole WAGO 2231-102
• DALI in- & output: 2-pole WAGO 714-102
• DMX input / thru & output: 3-pole WAGO 714-103
• Contact closure: 5-pole WAGO 714-105
