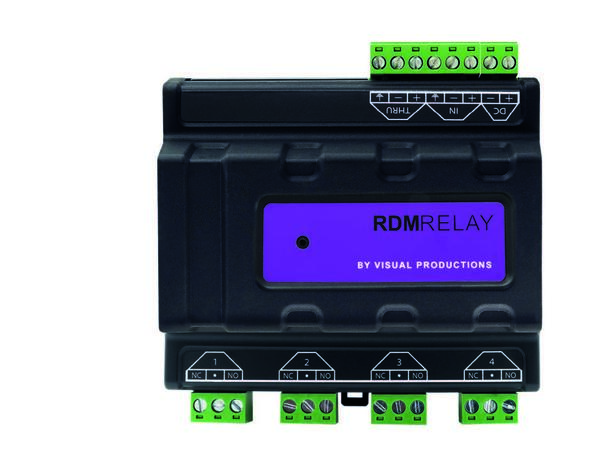

The RdmRelay is a DIN rail mounted device with 4 relays. Controllable via DMX and RDM, the RdmRelay
is a powerful tool in any lighting installation.

The RdmRelay is equipped with four heavy duty relays. The relays can switch 110V/230V equipment up
to 16 Amps per relay. This is ideal for controlling non-DMX equipment or switching off a lighting
installation.

The device can be set by RDM. This allows the start address to be set via any RDM commis- sioning
tool. Th relays are controlled via four DMX channels.

• DIN Rail mounting
• DMX512-A (ANSI E1.11)
• RDM (ANSI E1.20)

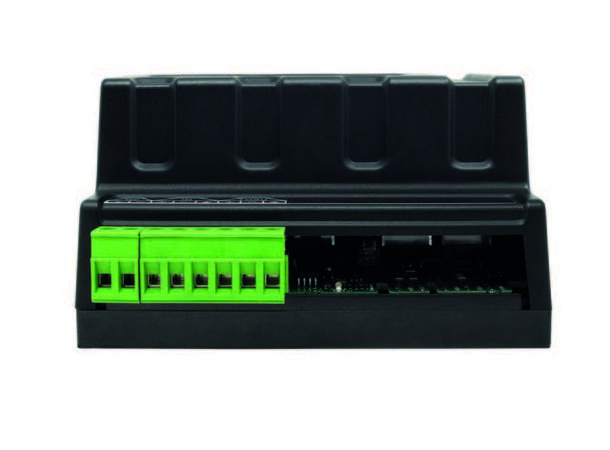

• Screw terminals

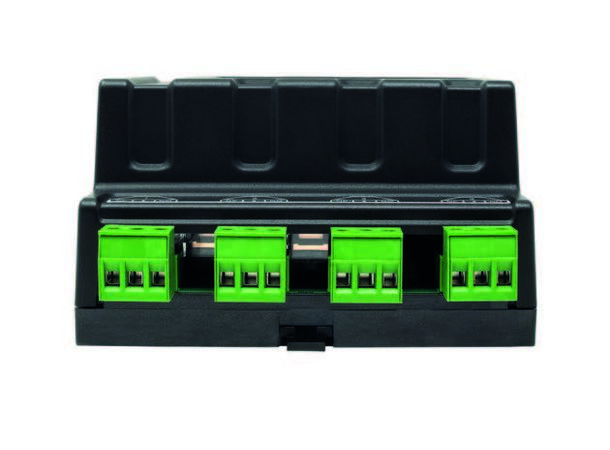

• 4 Relays each 16A/250V AC Resistive
• 9-24V DC 5W (PSU optional)
• Operating temperature -20°C to0°C (-4°F to 122°F)
• Operating relative humidity 10% to 80% non-condensing
• Compliance EN55103-1 EN55103-2
