Extend your SPI Installation

Need to bridge the gap between your SPI controller and LED strips?

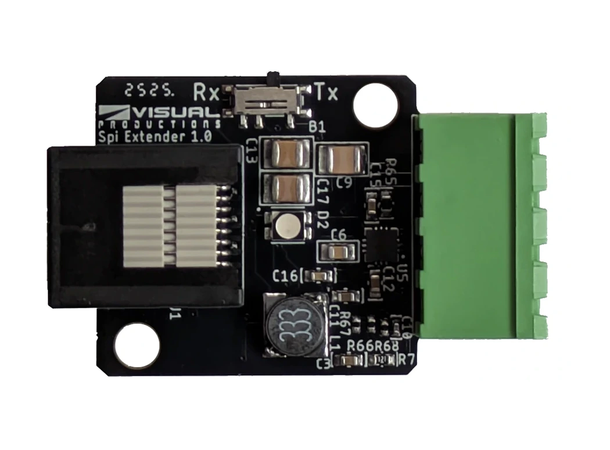

The SpiExtender lets you easily extend your setup up to 250 meters (820 feet) using standard CAT5 or higher cabling. By converting the SPI signal into a strong, reliable differential signal, it ensures flawless performance over long distances.

Simply pair two SpiExtenders per SPI signal path—one as a transmitter at the controller end and one as a receiver by the LEDs—with a handy built-in switch to toggle between modes.

Specifications

• Compatible with SPI (with or without clock)
• Up to 250m (820 feet)
• Uses CAT5 (or higher) cable
• 5-24VDC 100mA
• Operating temperature -20°C to +50°C (-4°F to 122°F)
• Compliance CE, ROHS, UKCA
