DESCRIPTION
The NANO series are the best-selling modules from W-DMX™, and pack all the best features of the technology. It fully supports DMX and RDM, and comes with a low power consumption and support of dynamic input voltage, in a very compact format.

TECHNICAL SPECIFICATIONS

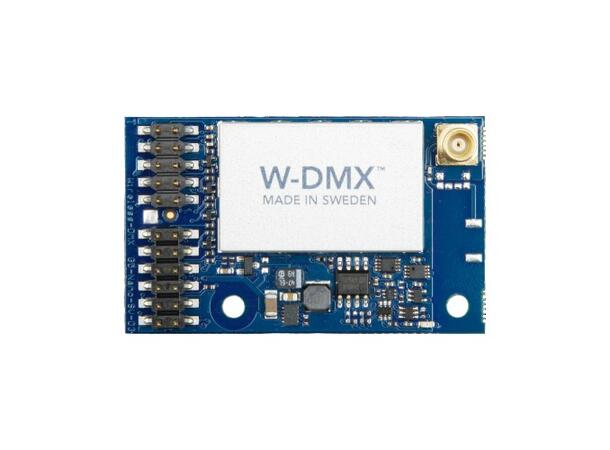

Transceiver module
MCX connector for external antenna.
Full SPI implementation and DMX over TTL as an option.
3.3V input on PIN 8
5V – 26V input on PIN 6
ISM band 2.4 GHz
Power consumption: 80mA in RX mode and 200mA in TX mode
All products approved by ETSI & FCC
53 x 32 mm
