Speaker type: Powered Subwoofer, bass-reflex
Frequency range (-10dB): 30Hz - 150Hz
Coverage area: -
Components (LF): 18" Cone, 4" Voice Coil, Ferrite magnet
Components (MF): -
Components (HF): -
Crossover: -
Sampling frequency rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 136dB SPL *1
Power rating (Dynamic): 1600W *2
Power rating (Continuous): 1230W
I/O Connectors (Analog I/O): Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT

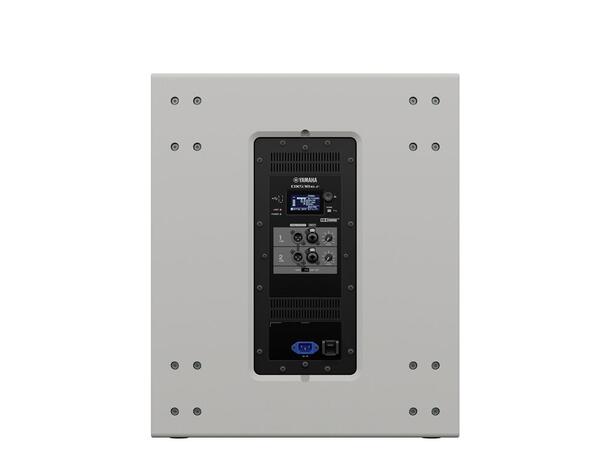

I/O Connectors (Others): USB2.0 Host 5V 500mA for USB memory DATA storage/load
I/O Connectors (AC): IEC AC inlet x1 (V-Lock)
Amplifier class: Class-D
Cooling: Fan cooling, Variable speeds
Power consumption: 40W (Idle), 180W (1/8)
Handle: Aluminium die-cast, Side x2
Rigging: -
Width: 550 mm (21.7")
Height: 657 mm (25.9") (with rubber feet)
Depth: 720 mm (28.3")
Net weight: 48.9kg (107.8lbs)
Options: Cover: SPCVR-DXS18X, Caster: SPW-1
Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle: -
Pole socket: F35 mm (depth 80mm), M20 Threaded (depth 25mm)
