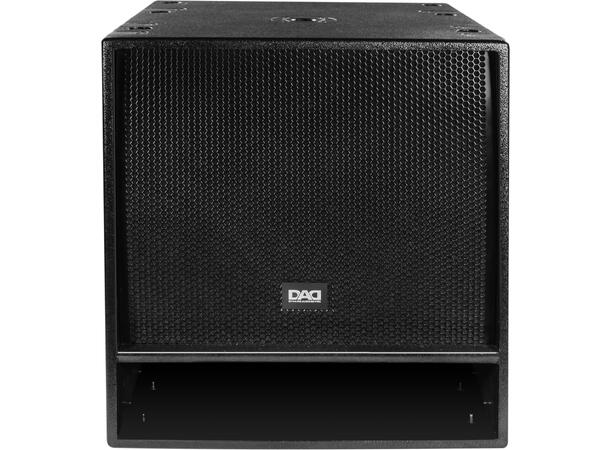

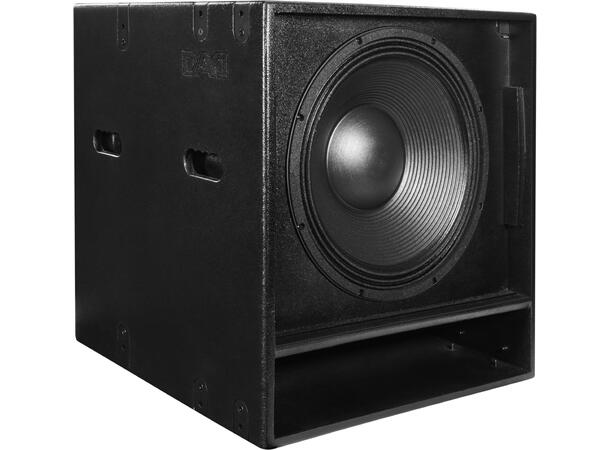

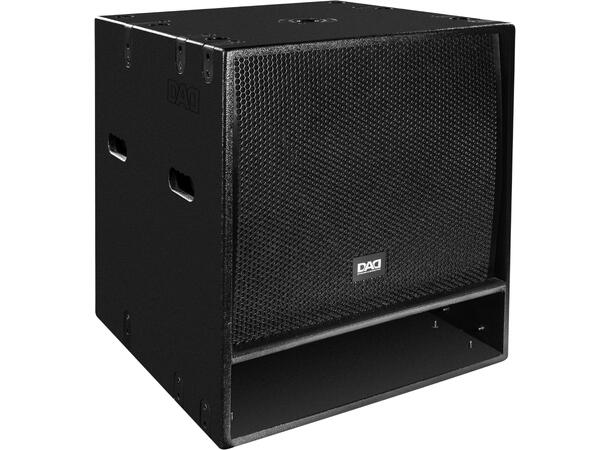

Aerodynamic bass-reflex passive subwoofer, 1700 W AES, 134dB SPL

Features:
Low frequency: 18'' woofer/4.5''v.c.
Frequency response: 30-150 Hz (±3dB)
High pressure on low frequencies in large indoor/outdoor venues
Birch plywood enclosure

LOUDSPEAKER
System type: passive subwoofer

COMPONENTS
Low frequency: 18'' woofer/4.5''v.c.

FEATURES
AES/program power: 1700/3400W
SPL max: 134dB @1m (free field)

ACOUSTICAL SPECIFICATIONS
Sensitivity: 97dB @1W/1m (free field)
Impedance: 8 Ohm
SPL cont/peak: 128/134dB @1m (free field)
Frequency response: 35-150Hz (±3dB)
Coverage angle HxV: ° omnidirectional
Suggest LPF range: 80-150Hz
Recommended amplifier up to: 3400W /8Ohm

INPUT/OUTPUT CONNECTORS
Input signal: Neutrik NL4 IN/OUT

CABINET CONSTRUCTION
Cabinet material: 18mm birchplywood
Sospension system: eyebolt, fly track, 35 mm pole mount
Handles: 4 on side
Hardware: 35 mm mounting pole

PHYSICAL
Dimensions (WxHxD): 615x6850x636mm
Weight: 51kg
