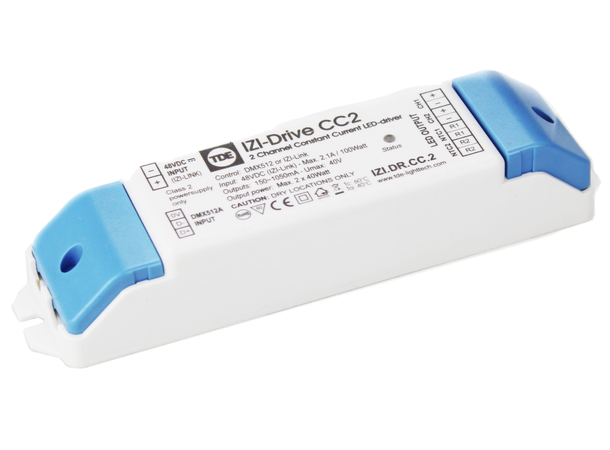

IZI-Drive CC2 LED Driver

The 2ch. Constant Current LED driver has a versatile design and utilizes hybrid dimming techniques, offering superb brightness control down to 0,0%.

This high-power LED driver can drive up to 40 Watts per channel, with a current that is user selectable from 150mA to 1050mA, in 50mA steps.

The LED driver allows control via an onboard IZI-Link interface or DMX-512 interface and is configurable through the IZI-manager.

Features

• Remote configuration
• Current range 150mA ~ 1050mA
• Precise current selection 50mA
• High output power 40W

Technical Specifications

Power

• Input voltage: 48VDC
• Output voltage: Max. 40VDC
• Output power: 2 x 40W
• Channels: 2
• Current per channel: 150mA ~ 1050mA (adjustable in steps of 50mA)

Control

• Control input: IZI-Link / DMX-512 galvanically isolated
• Additional input: 2 x NTC 10KO / 1 x 10KO potentiometer

Material

• Housing: Desktop ABS plastic
• Input connector: Print connector
• Screw terminal input power: Max 2,5mm²
• Terminal block control: Max 1,5mm²
• Terminal block LED output: Max 1,5mm²

Dimensions

165 x 40 x 30mm
