Applications:
• Any pro to pro or consumer equipment interfacing
• Converting +4dB input signals to -10dB output levels (switchable)
• Balanced signal to unbalanced signal conversion
Product Features:

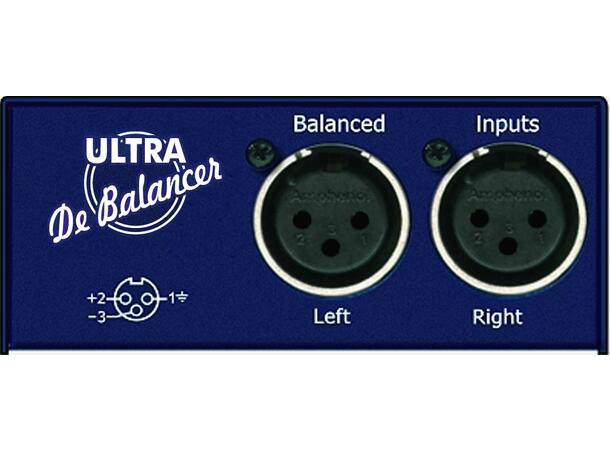

• The Audibox ISO Ultra deBalancer features industry standard Female Amphenol XLR Inputs and transformer isolated & de-balanced 6.5mm Jack, RCA and 3.5mm Jack outputs to cover all plug types.
• Transformer Ground isolation provides low-noise operation suitable for any application, preventing ground loops and other extraneous noise.
• The Audibox ISO Ultra deBalancer is a totally passive device with no power requirements, making it a truly universal problem solver.
• The heavy duty all-steel chassis is finished in attractive matt textured blue powdercoat, with hardwearing epoxy screen printing and a large slip resistant rubber pad underneath.
deBalancer Technical Specifications:
Input Impedance: 10K Ohms Balanced
Output Impedance: 10K Ohms unBalanced
Input Level (max): +12dB
Frequency Response: 20Hz - 20 KHz ± 0.5dB
Distortion: 0.05% Maximum THD, 0dB 1KHz
Output levels - switchable. +4dB (unity in / out) -10dB
Input Connectors: 3 pin Amphenol Female XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold.

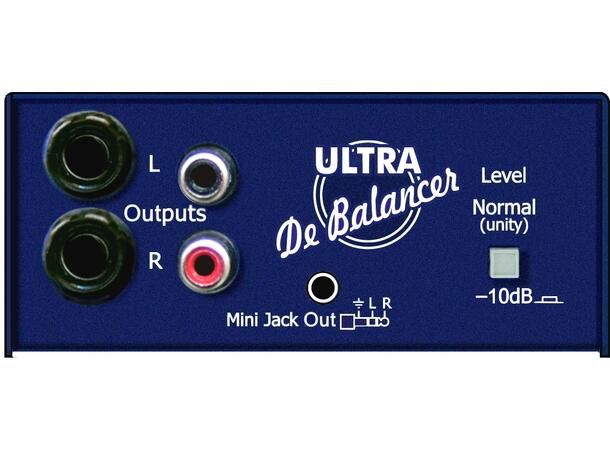

Output Connectors: Stereo RCA connectors, plus 6.5mm Mono Jacks (Left & Right) Sleeve - Ground, Tip + signal 3.5mm Stereo Jack wired Tip - Left, Ring - Right, Sleeve - Ground / Earth
Construction All-steel blue polyurethane coated chassis, fibreglass PCB
Input and Output grounds have both resistive and capacitive coupling for RFI suppression.
