Professional amplifier for 100v installations
High sound quality, easy to use and install

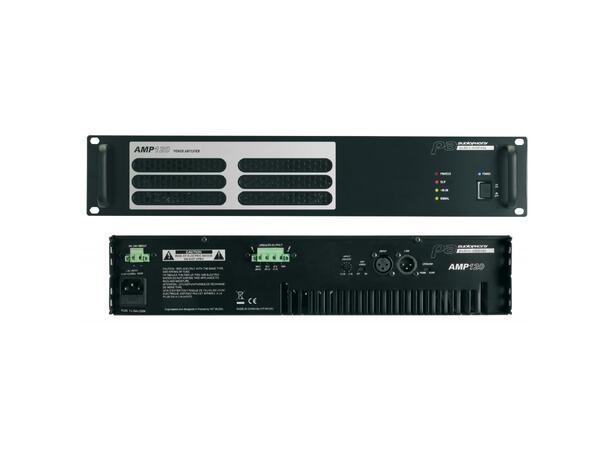

The AMP120 and AMP240 amplifiers were designed for professionals.
They guarantee a safe yet very functional usage. They are really powerful and can direct a great number of speakers without losing any sound quality.
Their adjustable input level helps them adapting to your system very easily and they deliver a crystal-clear sound, even at full power.
Operates under 8 Ohms / 70 V / 100 V
24 V safety
Adjustable input level
Mountable in 19" wide racks
High-pass filter
• XLR balanced input
• XLR balanced output
• RMS power output : 120 W RMS
• Power output terminal
• 24 V DC Input terminal
• Input sensitivity : 1.0 V (réglable)
• Input impedance : 10 kOhms (symétrique)
• Frequency response : 70 Hz - 18 kHz (+/-3 dB)
• T.H.D (1 kHz, 1/2 nominal power) : <1%
• Signal to noise ratio : 90 dB
• Ground Lift power switch
• Filtre Passe haut 400 Hz activable par switch
• Power supply :
- 100 - 240 V, 50/60 Hz, AC
- 24 V, DC (safe power supply)
• Protections : Short-circuits, Thermal, Overcharge
• Power outputs / Impedance :
- 100 V (83 Ohms)
- 70 V (42 Ohms)
- 4 Ohms (21,9 V)
• Power consumption : 185 W
• Net weight : 11.6 kg
• Dimensions (L x H x D) : 482 x 88 x 330 mm
• Mountable in 19? wide racks
• Height : 2 units
