CARDINAL DVM-194-HDBT-T-S Frontpanel HDMI/VGA/minijack - HDBaseT, grå CARDINAL DVM-194-HDBT-T-S Frontpanel HDMI/VGA/minijack - HDBaseT, grå

CARDINAL DVM-194-HDBT-T-S Frontpanel

HDMI/VGA/minijack - HDBaseT, grå

Varenr: 151891
Alt. varenr: DVM-194-HDBT-T-S
12 091,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

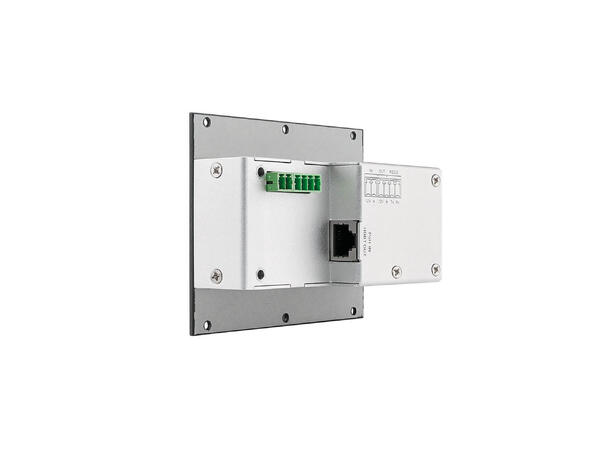

For the installation in desk, wall and floor systems the compact DVM-194-HDBT-T front panel solution comprises the following requirements in a single junction box of only three width units: HDMI®, VGA and mini jack inputs, automatic or manual source switching, HDBaseT output, power supply via PoH (Power over HDBaseT), built-in IR receiver, rear RS232 connection plus ample signal indicators.


Advantages:

  • Compatible with SYSBOXX / SYSDESK / SYSBOARD / SYSFLOOR / SYSTRUNK
  • integrated scaler for VGA

Application:

  • transmits FullHD signals up to 70m
  • transmits 4K / UHD signals up to 40m
  • transmits RS232 & IR bidirectionally
  • supports HDCP up to V1.4


Specifications:

Article numberDVM-194-HDBT-T-S
EAN4049371381420
BrandCARDINAL DVM
TypeFront panel
Colourwhite
Colour detailedwhite aluminum RAL9006
ModelFront panel, white aluminum RAL9006, HDMI, VGA mini jack <> HDBaseT
Packing1
