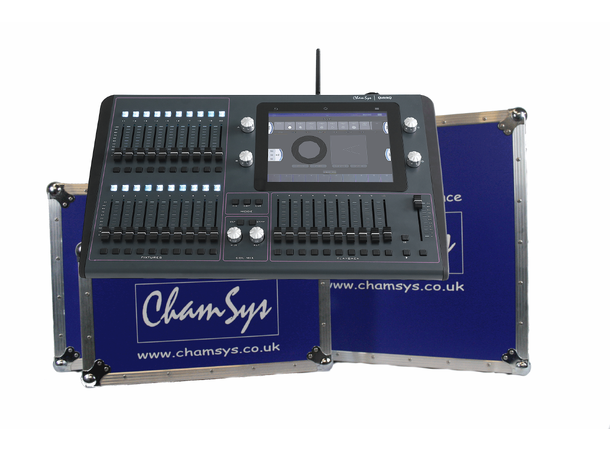

CHAMSYS Quick Q20 Lyskontroller

Key Features

• Design
• Simple user interface
• Easy navigation
• Large touch screen with easy to understand and intuitive graphical interface
• User prompts through setup, programming and operation
• Console Output Capacity
• No limit on number of fixtures, only by number of universes supported
• User Interface
• Modeled on smart phone icon interface and gesture support
• Intuitive interface allowing simple control of all fixture attributes
• Supports pinching for zooming and scrolling
• The remote app is identical to that on the console display so that you can easily swap between the two
• Playback Faders
• Dedicated Grand Master fader
• Dedicated Cue Stack Control section
• 10 multi-purpose Cue Stack/Chase faders
• Playbacks compatible with and aid progression towards MagicQ
• Fixture Faders
• Fader for Intensity Control
• Flash button
• Fixture, Group and Cue modes
• RGB LED shows current mode/state
• 20 fixture faders
• Networking
• QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
• Colour Control
• A dedicated “colour control area” with Hue and Saturation encoders, and a pair of additional buttons for colour control
• Select from in-built palettes and gel libraries using the touch screen
• Ports
• 2 USB ports for loading and saving shows, and for optional keyboard and mouse audio input and output
• In-built WIFI port for simple connection of tablets and smart phones
• Offline Software
• Offline editor available for both Windows and Mac
• Easy upgrades
• Includes MagicVis visualiser
• Replicates entire QuickQ console software excluding output
• WFX 2018 New Product Awards Winner
• Touch Screen 9.7"
• Universes Supported 2
• DMX Outputs 5-Pin XLR 2
• Fixtures Supported 1024
• Fixture Faders 20
• Bump Buttons Y
• Dedicated Hue/Saturation Encoders Y
• Attribute Encoders 4
• Master Faders 10 Multiple Function Playbacks
• Cue Stacks Multiple
• Dedicated Home Button Y
• USB 2
• Network Y
• External Monitor 1920 x 1080 HDMI
• Audio In/Out Y
• sACN Y
• ArtNet Y
• Pathport Y
• OSC Y
• MIDI Y
• MIDI Timecode Y
• Supports Moving Lights LEDs, Dimmers & Moving Lights
• Size (WDH mm) 560 x 350 x 106 mm
• Weight 5.2 kg
• RDM Autopatch
• HSV Colour Mixing
• Colour Picker
• Built-in FX
• Chase and Cue Support
• Execute Window
• Audio Triggering
• Tap to Time
• Software Upgrade/Downgrade
• Easy Fixture Personality Update
