Inspire™ External Control Box UL924
Inspire™ External Control Box
Key Features
UL924 compliant
Provides control signal to selected fixtures through emergency power in the event of mains loss
Color touch screen user interface
Low power draw
Convection cooled
Details

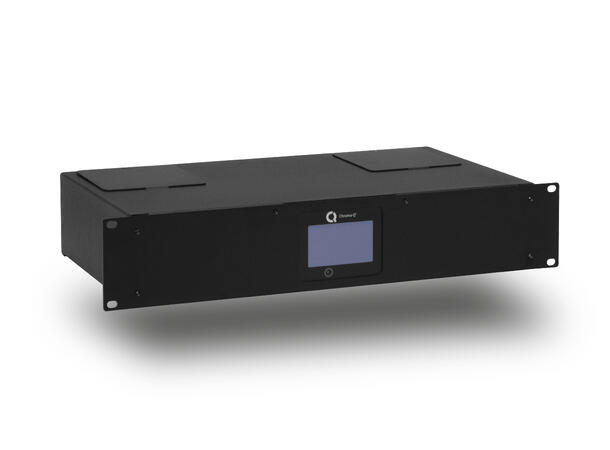

The Inspire™ External Control Box UL924 is a 19” rack mount external remote addressing unit for the control of the Inspire Terminal Strip fixtures via DMX 512.
Three control data output ports are available for the control of up to 32 daisy-chained fixtures from each port. DMX data input and through connections from an external DMX control console are via XLR 5-pin.
The Inspire External Control Box UL924 is built with Plug-in Terminal Block connectors for AC power input, Emergency power input, control data output signals and XLR DMX In and Thru connections.
Technical specifications
Product Code: CHINHLCTRLBOX924
Dimensions: 483mm x 88mm x 254mm / 19" x 3.5" x 10"
Weight: 2.5kg / 5.5lb
Shipping Dimensions: 533mm x 317.5mm x 133.5mm / 21" x 12.5" x 5.25"
Shipping Weight: 3.3kg / 7.3lb
Power Supply: Built-in
Power Input Rating: 100-240V AC, 50-60 Hz, .4A
Power Factor: 0.6
Power Consumption: 4.6W @ 120V AC; 9W @ 230V AC
Typical Power & Current Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors: In/Out Input only: Internal Terminal Block
Transfer Power: Input from Generator: Internal Terminal Block
Data Connectors: In/Out Output: Terminal Block
Input & Thru: XLR5
Max cable run: See ANSI E1.27-1 - 2006 / BSR E1.27-2
Control Protocol: ANSI E1.11 USITT DMX512-A
Control Protocol: Output to Fixture Chroma-Q proprietary communication
Cooling System: Convection
Operating Temperature: 0°C to 40°C
Construction: Powder coated aluminium
Colour: Black
IP Rating: IP20
Approvals: CISPR 22/EN55022 & CISPR 24/EN55024, ICES-003 Issue 4:2012 / FCC Part 15 Subpart B:2014, CSA C22.2 No. 166-M1983: R2013, UL 1573:2003 R2014, IEC 60598-2-17, UL924
Control Modes RGBW single, RGBW output, Tungsten, 0-10V, LookStore
Dimming Curve Theatrical
