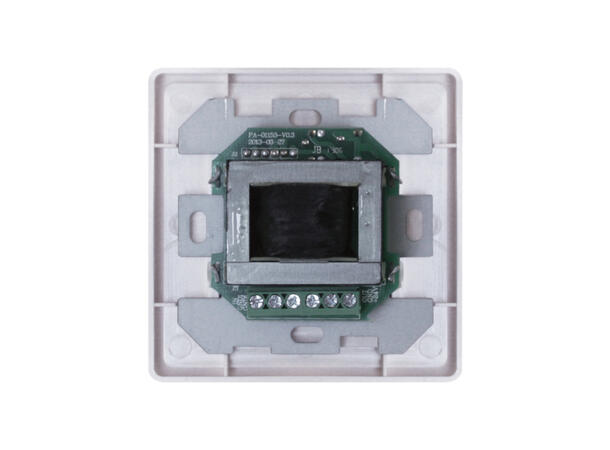

This 100V volume control offers 10 step attenuation (plus Off) and is ideal for localised attenuation of 100V speakers or zones. Select the attenuator wattage at the maximum total tappings of the loudspeaker(s) connected.
- 3 year warranty
- 11 volume positions (10 + off)
- Rugged plastic fascia
- 2 x M3 wall screws included
- Requires back box (not supplied - CRVOL09)
- Rated power: 20W
- Line input: 70V / 100V
- Attenuation per step: 3dB
- Total attenuation: 33dB
- Attenuation positions: 10 + off
- DC 24V relay: No
- Dimensions (H x W x D): 80 x 80 x 48mm
