2-way passive loudspeaker, 120 W AES, 116dB SPL
Features:
Low frequency: 6'' woofer/0.75'' v.c.
High frequency: 1'' driver / 1.5'' v.c.
Frequency response: 75-18000 Hz (±3dB)
ARK106 full range speakers are suitable for small installations or can be used as satellites in combination with the passive or active sub.

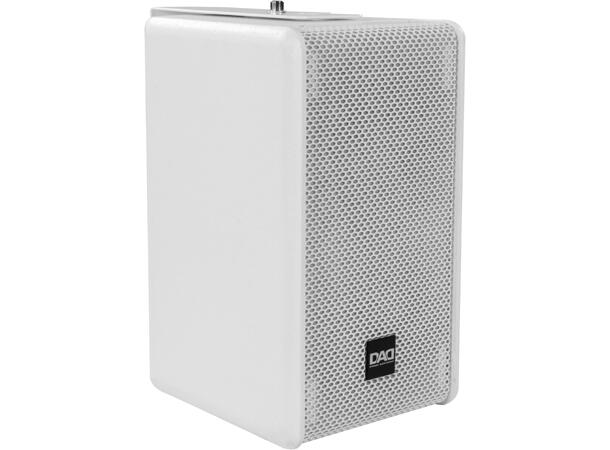

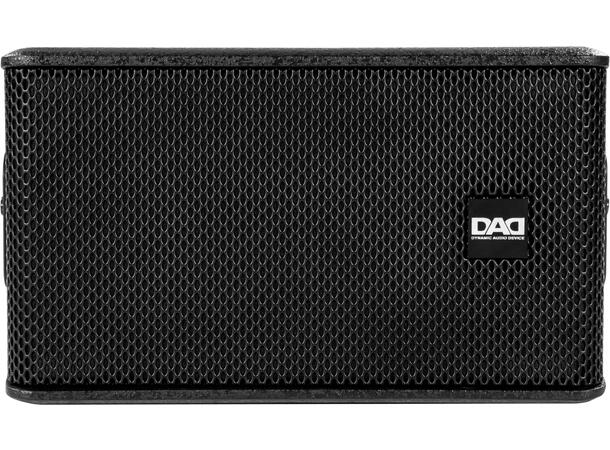

The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
LOUDSPEAKER
System type: passive 2 way
COMPONENTS
Low frequency: 6'' woofer/1.5''v.c.
High frequency: 1'' driver/1''v.c.
FEATURES
AES/program power: 120/240W
SPL max: 116dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 92dB @1W/1m (free field)
Impedance: 16 Ohm
SPL cont/peak: 110/116dB @1m (free field)
Frequency response: 75-18000Hz (±3dB)
Coverage angle HxV: 140x140°
Cross over frequency: 2500Hz
Protection: H.F. signal compression
Suggest HPF range: 120/160Hz
Recommended amplifier up to: 240W /16Ohm
INPUT/OUTPUT CONNECTORS

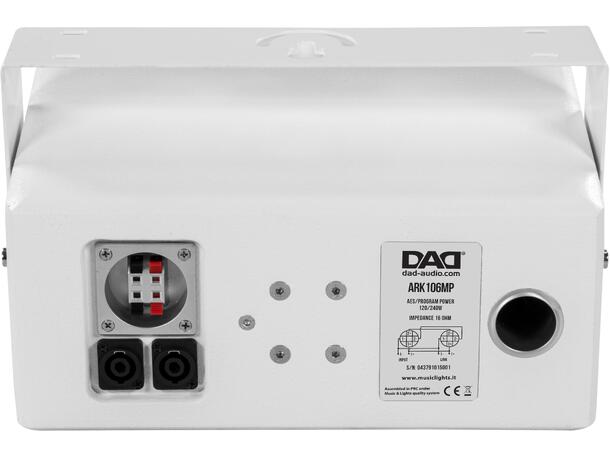

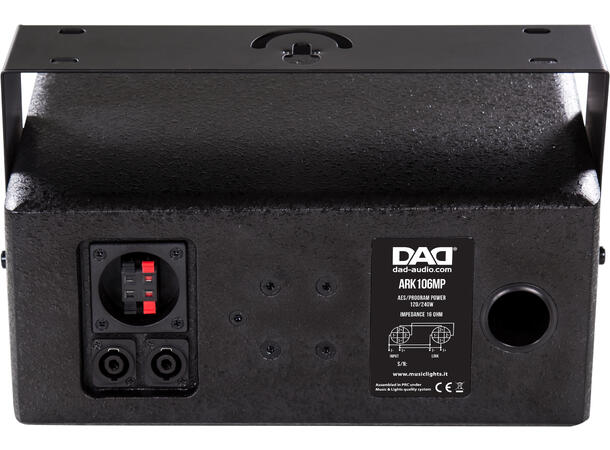

Input signal: 4pole - terminal clamp IN/OUT
CABINET CONSTRUCTION
Cabinet material: 12mm plywood

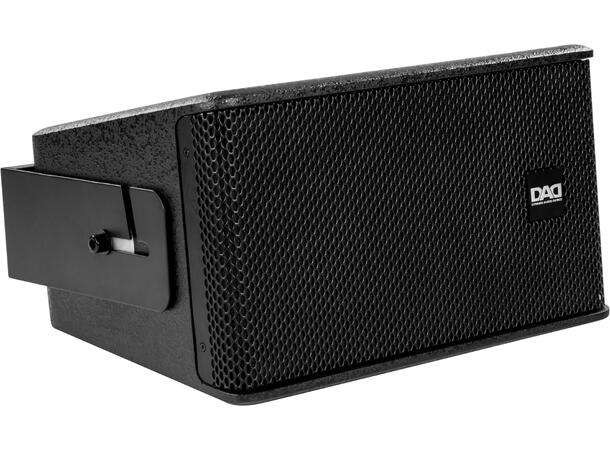

Sospension system: wall brackets (included)
Angle: 7.5° trapezoidal taper
PHYSICAL

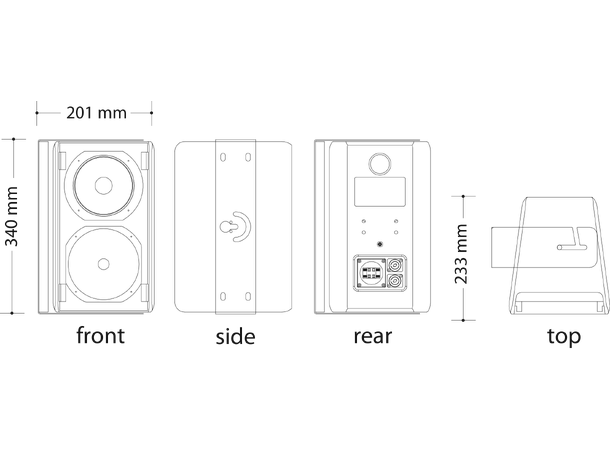

Dimensions (WxHxD): 201x340x233mm
Weight: 6.5kg
