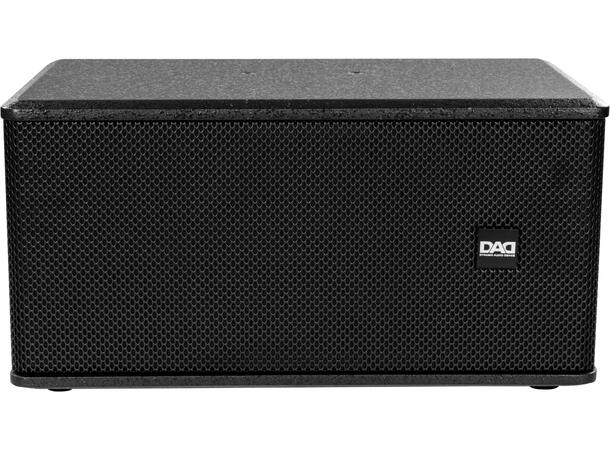

Bass-reflex active subwoofer, 2x700 W D-class amplifier, 121dB SPL
Features:
Low frequency: 2x8'' woofer/2'' v.c.
Frequency response: 40-200 Hz (±3dB)
Built-in DSP: fully adjustable

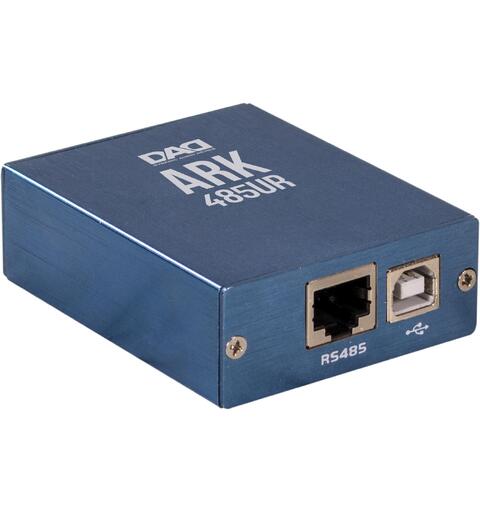

Remote control with RJ45 port via ARK485UR accessory
ARK208SA amplified subwoofer speaker can drive up to 4 full range speakers of the ARK series plus an additional ARK208SP passive subwoofer.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
LOUDSPEAKER
System type: active subwoofer
COMPONENTS
Low frequency: 2x8'' woofer/2''v.c.
FEATURES
Built-in amp LF/MF-HF: 700+700W /4Ohm
Built-in DSP: fully adjustable
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 116/122dB @1m (free field)
Frequency response: 40-200Hz (±3dB)
Coverage angle HxV: ° omnidirectional
Suggest LPF range: 120/200Hz
ELECTRONICS
Amplifier: digital
Power: 700+700W /4Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: limiter temp.
User controls: volume
Built-in DSP: 28/56bit
Operating voltage/frequency: 220 V~240 V/50 Hz

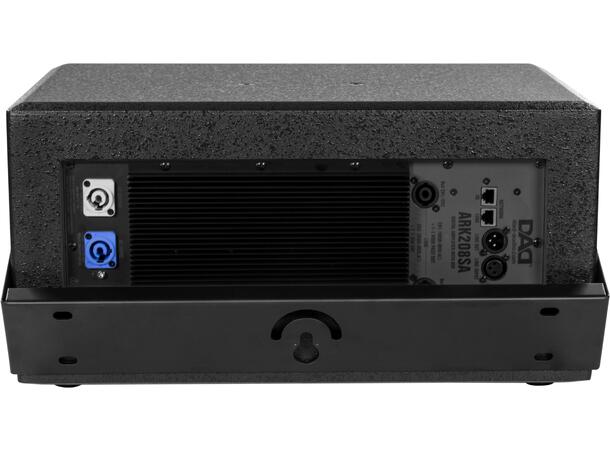

INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT
Output signal: 2 x 4 pole
Data: RJ485 port
Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
Cabinet material: 12mm plywood

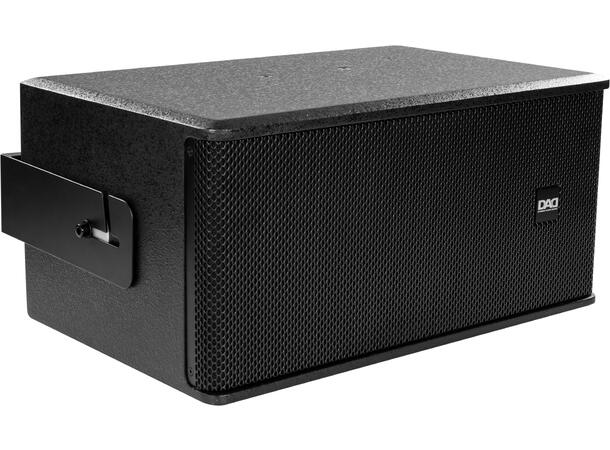

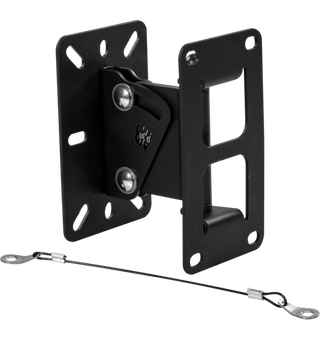

Sospension system: wall brackets (included)
PHYSICAL
Dimensions (WxHxD): 500x246x235mm
Weight: 14.5kg
