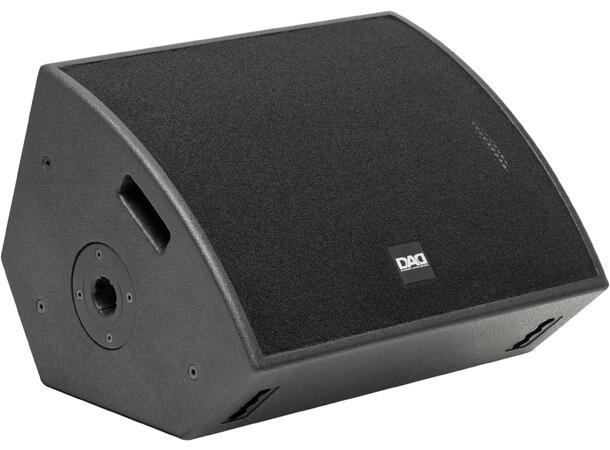

Active stage-monitor, coaxial design, D+AB class bi-amp. 2-way 350+70 W, 128db SPL
Features:
Low frequency: 12'' woofer/2.6''v.c.
High frequency: 1'' driver/1.3''v.c.
Frequency response: 60-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction in the monitoring of voice and music for live and recorded performances
Birch plywood enclosure
For sound installations in environments requiring dynamics and high sound pressure
LOUDSPEAKER
System type: active stage monitor, coaxial design
COMPONENTS
Low frequency: 12'' woofer/2.6''v.c.
High frequency: 1'' driver/1.3''v.c.
FEATURES
Built-in amp LF/HF: 350+70W
SPL max: 127dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 121/127dB @1m (free field)
Frequency response: 60-18000Hz (±3dB)
Coverage angle HxV: 80x80°
Cross over frequency: 2000Hz
ELECTRONICS
Amplifier: digital + AB class
Power: 350+70W /4/8Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: fast limiter, temp
User controls: mic, line, master, eq LF-HF
Processor: analog
Operating voltage/frequency: 220 V~240 V/50 Hz

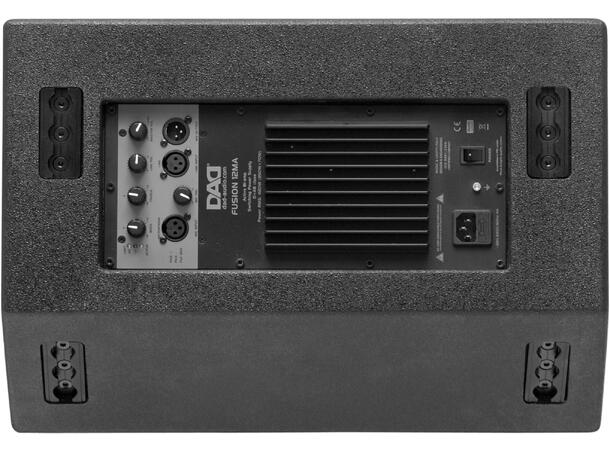

INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT
Power connection: VDE
CABINET CONSTRUCTION
Cabinet material: 15mm birchplywood
Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
Angle: 40° monitor applications
Handles: 2 on side
PHYSICAL
Dimensions (WxHxD): 502x370x440mm
Weight: 20kg
