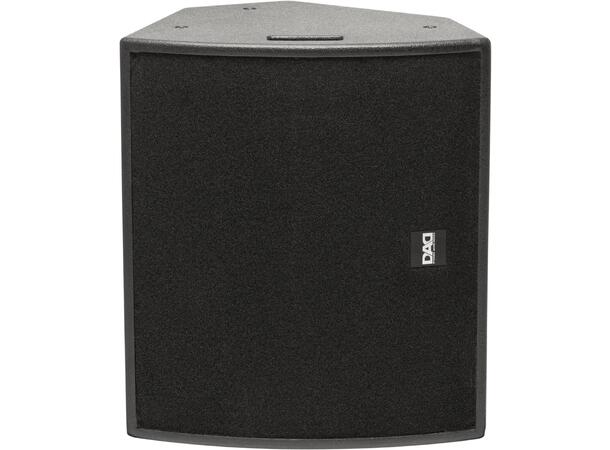

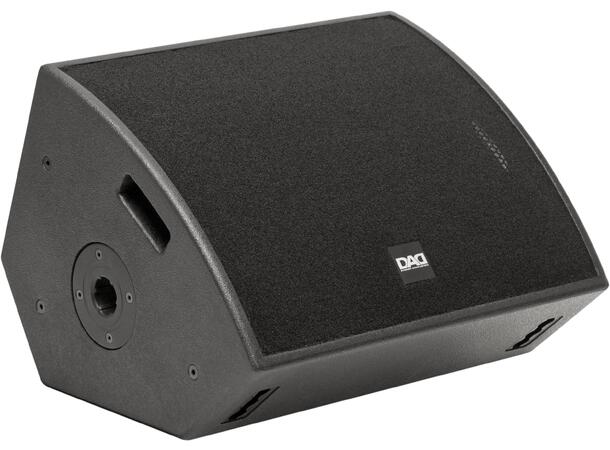

DAD FUSION12MP Passiv scenemonitor 12+1"

Passive stage-monitor, coaxial design, 2-way 250 W AES, 127db SPL

Features:
Low frequency: 12'' woofer/2.6''v.c.
High frequency: 1'' driver/1.3''v.c.
Frequency response: 65-18000 Hz (±3dB)
Reproduction in the monitoring of voice and music for live and recorded performances
Birch plywood enclosure
For sound installations in environments requiring dynamics and high sound pressure

LOUDSPEAKER
System type: active stage monitor, coaxial design

COMPONENTS
Low frequency: 12'' woofer/2.6''v.c.
High frequency: 1'' driver/1.3''v.c.

FEATURES
AES/program power: 250/500W
SPL max: 129dB @1m (free field)

ACOUSTICAL SPECIFICATIONS
Sensitivity: 98dB @1W/1m (free field)
SPL cont/peak: 123/129dB @1m (free field)
Frequency response: 65-18000Hz (±3dB)
Coverage angle HxV: 80x80°
Cross over frequency: 1700Hz
Protection: H.F. signal compression
Recommended amplifier up to: 500W /8Ohm

INPUT/OUTPUT CONNECTORS
Input signal: 4pole IN/OUT

CABINET CONSTRUCTION
Cabinet material: 15mm birchplywood
Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
Angle: 40° monitor applications
Handles: 2 on side

PHYSICAL
Dimensions (WxHxD): 502x370x440mm
Weight: 17kg
