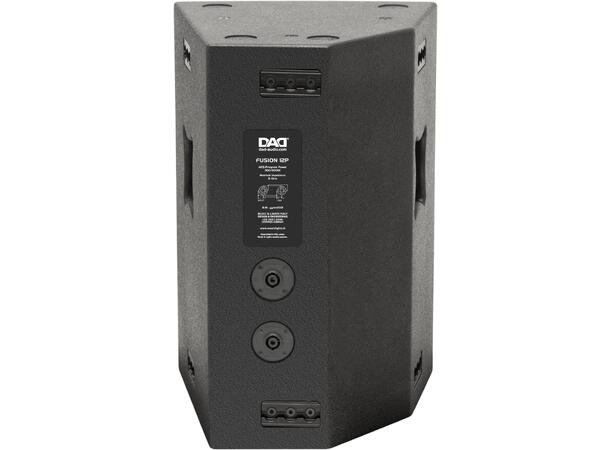

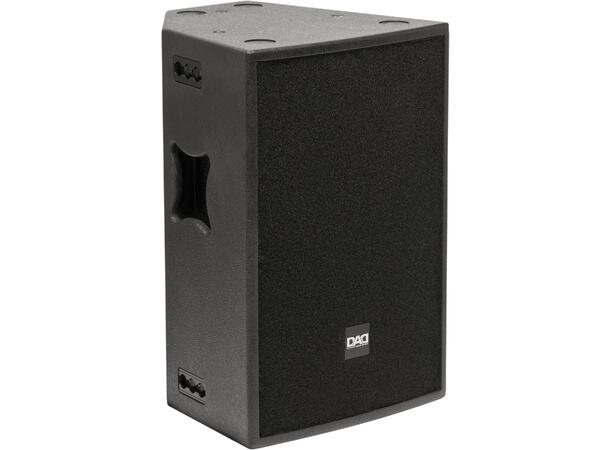

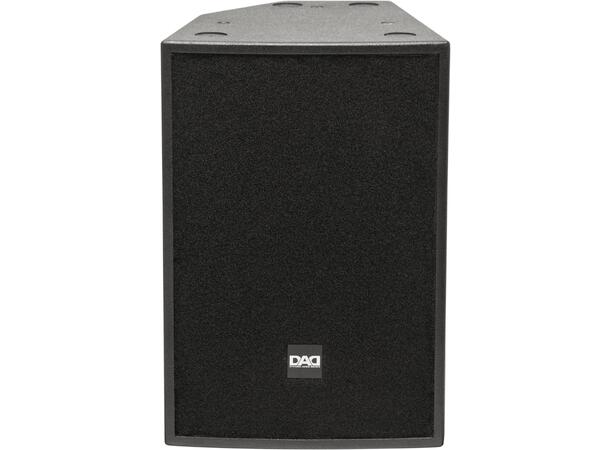

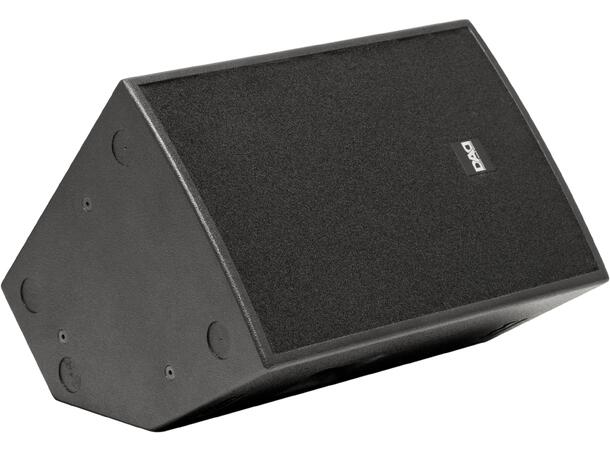

DAD FUSION12P Passiv høyttaler 12" + 1"

2-way passive loudspeakers, 300 W AES, 129db SPL

Features:
Low frequency: 12'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 65-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Birch plywood enclosure, designed for stage-monitor application
For sound installations in environments requiring dynamics and sound pressure

LOUDSPEAKER
System type: passive 2 way

COMPONENTS
Low frequency: 12'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.

FEATURES
AES/program power: 300/600W
SPL max: 129dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 98dB @1W/1m (free field)
SPL cont/peak: 123/129dB @1m (free field)
Frequency response: 65-18000Hz (±3dB)
Coverage angle HxV: 90x70°
Cross over frequency: 1700Hz
Protection: H.F. signal compression
Recommended amplifier up to: 600W /8Ohm

INPUT/OUTPUT CONNECTORS
Input signal: 4pole IN/OUT

CABINET CONSTRUCTION
Cabinet material: 15mm birchplywood
Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
Angle: 10 - 40° monitor applications
Handles: 2 on side

PHYSICAL
Dimensions (WxHxD): 361x530x367mm
Weight: 23kg
