ENTTEC DIN Ethergate

ENTTEC’s DIN ETHERGATE is a robust and reliable installation grade DMX node engineered to take any architectural, commercial or entertainment project to the next level.

With 2 universes of bi-directional eDMX -> DMX conversion and ArtRDM support, the DIN ETHERGATE is a flexible, cost effective method to connect physical DMX devices to your network infrastructure.
All configuration is managed through the localhost web interface to simplify commissioning.

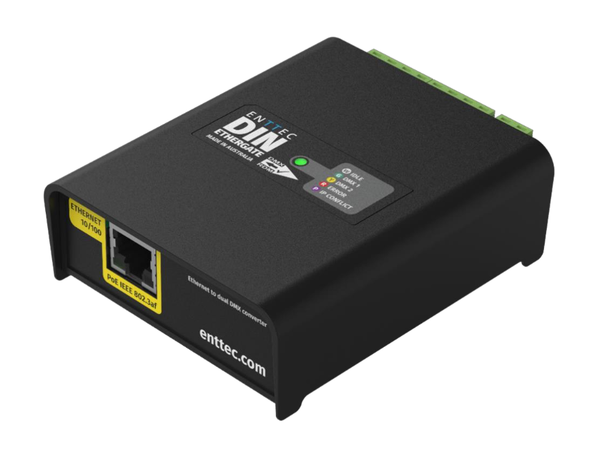

The DIN ETHERGATE’s slim, 4 DIN-module electrically insulated housing supports TS35 DIN and surface mounting for fast installation. Pluggable terminal blocks with inbuilt termination line make wiring simple.
Power the DIN ETHERGATE using power over ethernet (PoE) or 7-24v DC input.

Features

• Two bi-directional DMX/ E1.20 RDM ports with optional termination and RDM support.
• Support for Art-Net 4, sACN and ESP.
• Supports DMX -> Art-Net Broadcast or Unicast. ? HTP/LTP merging support for up to 2 DMX
  sources.
• Configurable DMX output refresh rate.
• Surface or TS35 DIN rail mount.
• Supports IEEE 802.3af PoE (Power over Ethernet) or DC 7-24v input.
• Intuitive device configuration and updates through the inbuilt web interface.
• DHCP or static IP Address support.
• 10/100 Mbps network speed.
• ‘Current DMX Buffer’ allows DMX values to be viewed per port.
