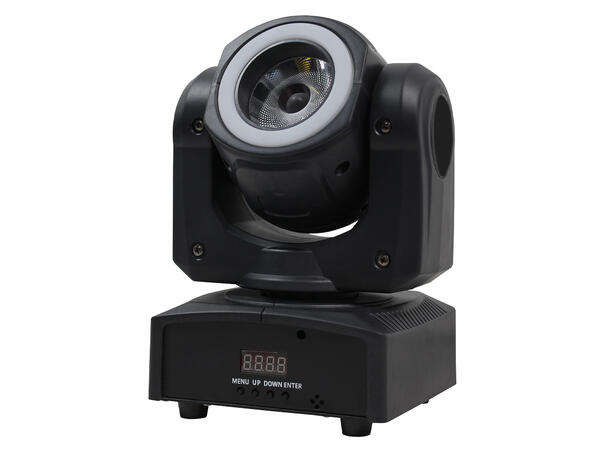

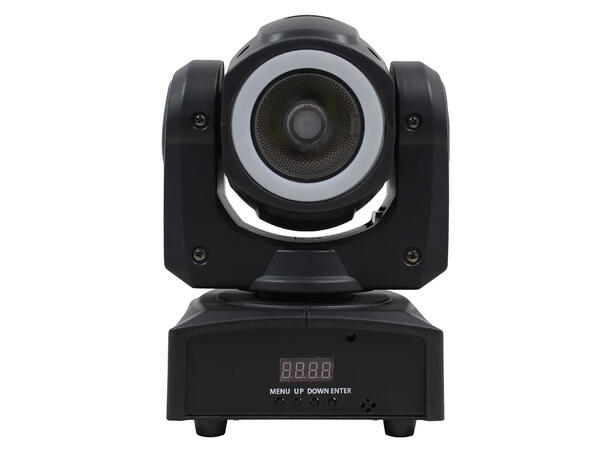

Fusion Orbit is a compact, powerful moving head producing a tightly focused 4° aerial beam effect from the 60W RGBW quad-colour LED.

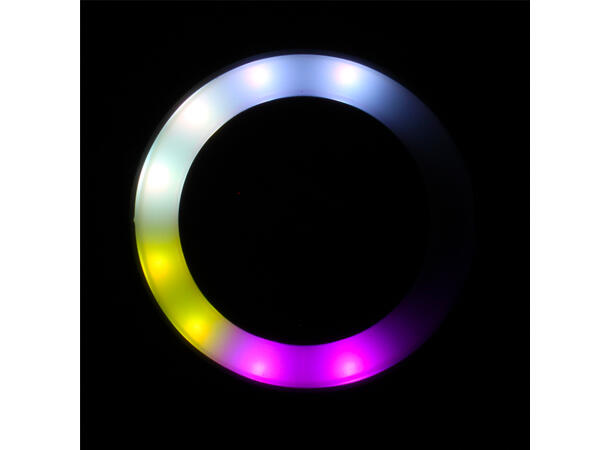

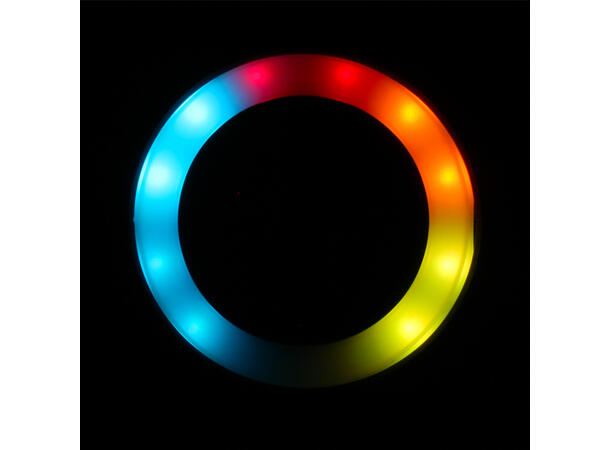

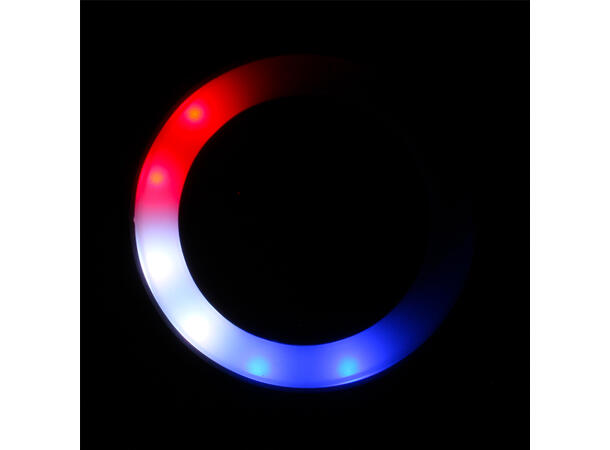

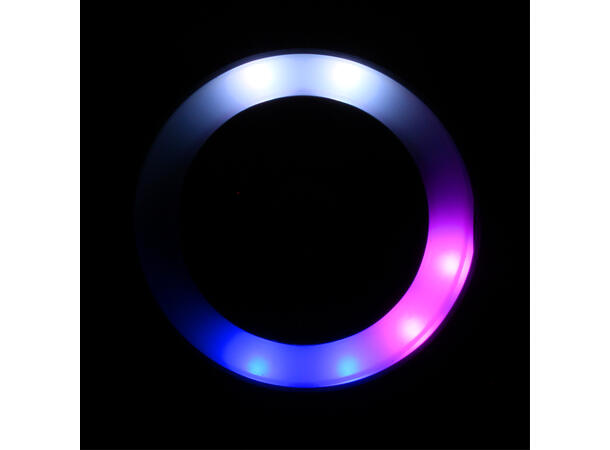

It is surrounded by an RGB LED ring which changes colour and chases, producing mesmerising effects. With multiple built-in on-board functions this unit can either work in auto, sound active or DMX modes.
Features:
- 1 x 60W quad-colour LED (RGBW)
- 12 x tri-colour 5050 SMD LEDs (RGB)
- Beam angle: 4°
- 22,403 Lux @ 2m
- DMX channels: 1/2/16 or 30 selectable
- Auto, sound active and master/slave modes
- Pan: 540°, Tilt: 210°
- 0-100% dimming and variable strobe
- Supplied with hanging bracket
- 4 push button menu with LED display
- IEC power input
- 3-Pin XLR input/output
- Fan cooled
Specifications:
- Power consumption: 65W
- Power supply: 100~240V, 50/60Hz
- Fuse: F3.15A 250V
- Dimensions: 238 x 172 x 146mm
- Weight: 2.5kg
